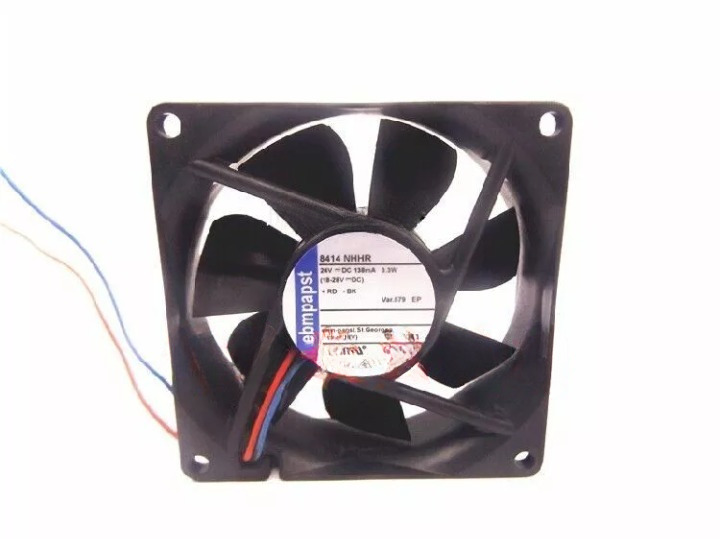

Ebm-papst 8414NHHR Axial Fan 80x80x25mm 24VDC High Performance with Speed Signal

Product: Ebm-papst 8414NHHR Axial Fan 80x80x25mm 24VDC High Performance with Speed Signal

Full Specifications:
– Dimensions: 80 x 80 x 25 mm
– Nominal Voltage: 24 VDC
– Type of Voltage: DC
– Operating Voltage Range: 14 to 27.6 VDC
– Nominal Speed: 3400 min^-1 (RPM)
– Power Consumption: 1.8 W
– Air Flow: 38.3 m³/h
– Sound Pressure Level: 28 dB(A)
– Bearing Type: Ball bearing
– Service Life L10 at 40°C: 65000 h
– Service Life L10 at Maximum Temperature: 40000 h
– Maximum Ambient Temperature: 70°C
– Speed Signal: Yes
– Material: Fiberglass-reinforced plastic; impeller PA, housing PBT
– Protection Class: IP20
– Mass: 0.1 kg
– Connection: Stripped, tinned leads
– Motor Protection: Protected against reverse polarity and locking

Key Features:
– High-performance compact fan designed for demanding applications
– Integrated speed signal for precise control of fan operation
– Energy-efficient design with optimized flow and pressure characteristics
– Robust ball bearing system for long service life and operational reliability
– Low noise emission for use in noise-sensitive environments
– Wide operating voltage range suitable for fluctuating voltage conditions
– Reverse polarity and locking protection for enhanced safety and durability
– Easy to install with stripped, tinned lead connections
– Suitable for use in high ambient temperatures up to 70°C

Models Suitability:
The Ebm-papst 8414NHHR Axial Fan is suitable for a variety of applications where efficient cooling and airflow are required, including but not limited to:
– Telecommunications equipment
– IT and server rack cooling
– LED cooling systems
– Industrial control cabinets
– Medical devices
– Automotive applications
– Compact heat exchangers
– Frequency converters
– Solar inverters

This fan is designed to meet the needs of applications that demand high reliability and performance in thermal management.
