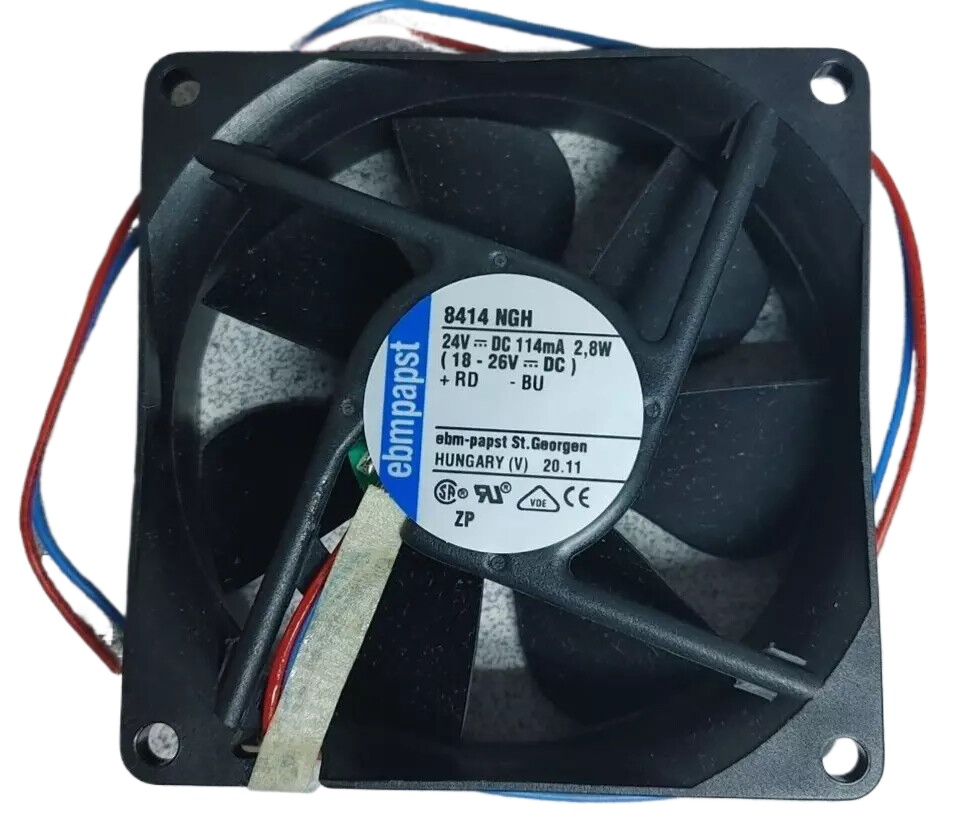

Ebm-papst 8414NGH Axial Cooling Fan 80x80x25mm 24VDC High Performance Low Noise

Product: Ebm-papst 8414NGH Axial Cooling Fan 80x80x25mm 24VDC High Performance Low Noise

Full Specifications:
– Dimensions: 80 x 80 x 25 mm
– Operating Voltage: 24 VDC
– Current Draw: 125 mA
– Power Consumption: 3 W
– Speed: 3400 RPM
– Air Flow: 32.6 CFM (55.4 m³/h)
– Static Pressure: 0.135 inH2O (33.7 Pa)
– Noise Level: 28 dB(A)
– Bearing Type: Ball bearing
– Expected Life: 65,000 hours at 40°C
– Weight: 0.15 kg
– Material: Fiberglass-reinforced plastic; impeller and housing
– Motor Protection: Locked rotor protection and polarity protection
– Connection: 2 wires, stripped ends
– Ambient Temperature Range: -20°C to +70°C
– Approval: UL, CSA, VDE, CE
– Protection Class: IP20

Key Features:
– S-Force high-performance technology for demanding applications
– Energy-efficient GreenTech EC motor
– Compact design suitable for high-density electronic components
– Low noise emission for noise-sensitive environments
– Robust construction ensuring long service life
– Maintenance-free ball bearing system
– Optimized fan blades for efficient airflow and pressure
– Advanced aerodynamic design for maximum cooling efficiency
– Easy to install with stripped wire leads for quick connection

Models Suitability:
The Ebm-papst 8414NGH Axial Cooling Fan is suitable for a wide range of applications where high airflow and low noise are critical. These include but are not limited to:
– Telecommunications equipment
– IT and server rack cooling
– LED cooling systems
– Industrial control cabinets
– Medical devices
– Automotive applications
– Home appliances
– Compact power supplies
– Inverter cooling systems

The fan’s high-performance characteristics make it an ideal choice for applications that require reliable and efficient cooling in a compact form factor. Its low noise output also makes it a preferred component in environments where noise levels are a concern, such as office equipment, audio and video equipment, and sleep apnea machines.
