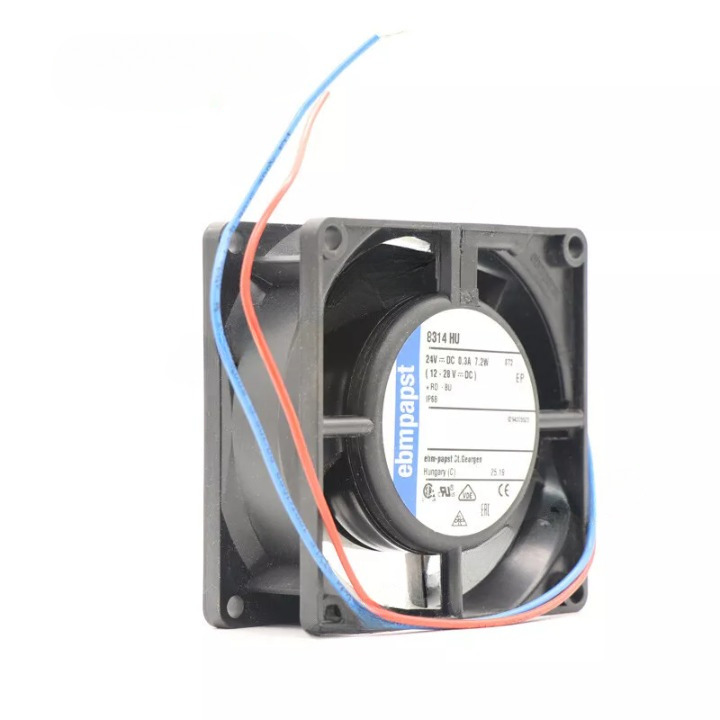

Ebm-papst 8314HU Axial Fan 80x80x32mm 24VDC High Performance S-Force Series
$63.79
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 8314HU Axial Fan 80x80x32mm 24VDC High Performance S-Force Series features a compact design, energy-efficient GreenTech EC motor, low noise emission, durable construction, advanced aerodynamics, speed control options, electronic protection, maintenance-free ball bearings, and wide temperature range suitability. Ideal for telecommunications, industrial, medical, automotive, home appliances, and renewable energy applications.
Product: Ebm-papst 8314HU Fan
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 5.8 W
– Speed: 3400 min^-1
– Air flow: 160 m³/h
– Static pressure: 85 Pa
– Noise level: 50 dB(A)
– Degree of protection: IP20
– Motor protection: Locked-rotor and reverse polarity protection
– Direction of rotation: Right, seen on rotor
– Bearing type: Ball bearings
– Connection: Stranded wires
– Cable length: 300 mm
– Housing material: Fiberglass-reinforced plastic
– Impeller material: Fiberglass-reinforced PA plastic
– Weight: 0.3 kg
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 h at 40°C
Key Features:
– Compact design for installation in tight spaces
– Energy-efficient GreenTech EC motor technology
– Low noise emission for quiet operation
– Durable and robust construction for long service life
– Advanced aerodynamic design for high-performance air delivery
– Speed-controllable via analog (0-10V) or PWM signal
– Equipped with electronic protection against overload
– Maintenance-free ball bearings for reliable operation
– Easy to connect with stranded wire leads
– Suitable for use in a wide range of ambient temperatures
Models Suitability:
– Ideal for use in telecommunications, IT, and office electronics where consistent cooling is required
– Suitable for industrial applications such as control cabinet cooling, frequency converters, and LED cooling
– Appropriate for medical equipment where reliability and low noise are critical
– Can be used in automotive applications, including battery cooling systems and air conditioning units
– Perfect for compact home appliances and multimedia equipment with space constraints
– Applicable in renewable energy systems like inverters for solar and wind power applications
