Ebm-papst 8314H Axial Fan 80x80x32mm 24VDC 50CFM High Performance Ball Bearing
$20.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

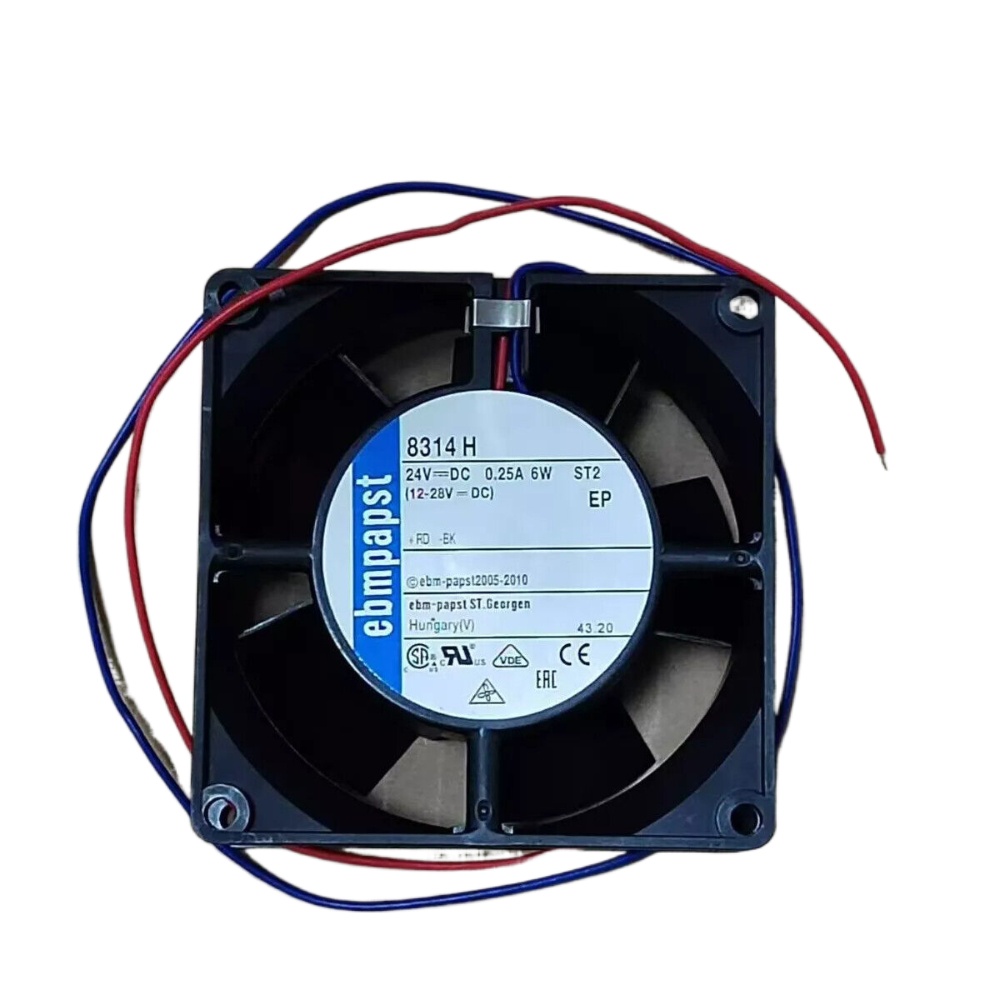

Product: Ebm-papst 8314H Axial Fan
Specifications:
– Voltage: 24 VDC
– Power: 5.0 W
– Speed: 3400 min^-1
– Air flow: 160 m³/h
– Noise level: 50 dB(A)
– Material: Fiberglass-reinforced plastic
– Dimensions: 80 x 80 x 32 mm
– Temperature range: -20°C to +70°C
– Bearing type: Ball bearings
– Certifications: CE, UL, CSA, VDE
Key Features:
– High static pressure
– Compact design
– Energy-efficient motor
– Low noise emission
– Durable construction
– Speed-controllable
– Maintenance-free bearings
Suitability:
Ideal for telecommunications, IT, industrial, LED, medical, automotive, and air volume systems.
Product: Ebm-papst 8314H FAN
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 5.0 W
– Speed: 3400 min^-1
– Air flow: 160 m³/h
– Static pressure: 85 Pa
– Noise level: 50 dB(A)
– Degree of protection: IP20
– Motor protection: Locked-rotor and reverse polarity protection
– Direction of rotation: Clockwise, seen on rotor
– Material: Fiberglass-reinforced plastic
– Mass: 0.4 kg
– Dimensions: 80 x 80 x 32 mm
– Ambient temperature range: -20°C to +70°C
– Service life L10 at 40°C: 65000 h
– Bearing type: Ball bearings
– Connection: Stripped wires
– Market certifications: CE, UL, CSA, VDE
Key Features:
– S-Force high-performance technology for high static pressure
– Compact design for space-limited applications
– Energy-efficient GreenTech EC motor
– Low noise emission for sound-sensitive environments
– Robust and durable construction
– Advanced aerodynamic impeller design
– Speed-controllable via analog or PWM input
– Intelligent electronics for versatile control options
– Maintenance-free ball bearings for long service life
Models Suitability:
The Ebm-papst 8314H FAN is suitable for a wide range of applications where efficient cooling and air circulation are required. These include but are not limited to:
– Telecommunications equipment
– IT and server rack cooling
– Industrial control cabinets
– LED cooling systems
– Medical devices
– Compact heat exchangers
– Automotive applications
– Variable air volume systems
The fan’s high-performance characteristics make it an ideal choice for applications that demand reliability and efficiency in challenging environmental conditions.
