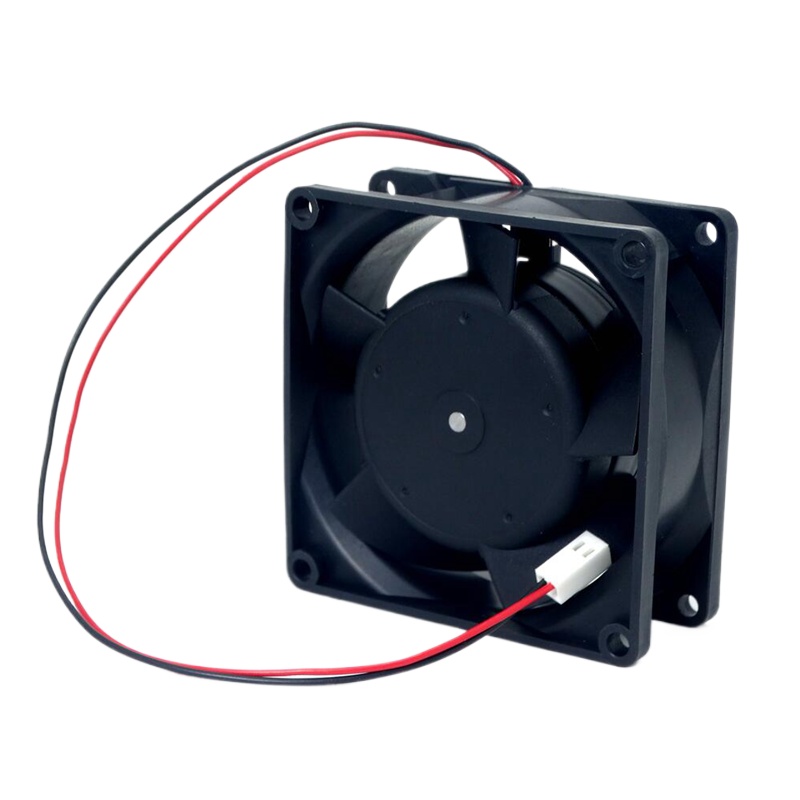

Ebmpapst 8312 Axial Fan 12VDC 80x80x25mm 47CFM 2600RPM Ball Bearing
$20.70
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebmpapst 8312 Axial Fan 12VDC 80x80x25mm 47CFM 2600RPM Ball Bearing: This high-quality axial fan by Ebm-papst, part number 8312, operates at a nominal 12VDC with a voltage range of 6-15VDC. Its compact frame size of 80mm x 80mm x 25mm delivers an airflow of 47 CFM at a speed of 2600 RPM, utilizing a durable ball bearing design. The fan’s power consumption is 1.4W with a current of 0.115A and a noise level of 28 dBA. It is constructed with a plastic housing and impeller, has a static pressure of 3.8 mmH2O, and connects via 2 wire leads. With a life expectancy of 70,000 hours at 40°C and an MTBF of 280,000 hours, it is designed for reliable and efficient cooling across various applications, including electronics, telecommunications equipment, industrial control cabinets, 3D printers, automotive applications, general ventilation, small appliances, projectors, and medical devices, provided it meets the necessary certifications.
Ebmpapst 8312 Axial Fan 12VDC 80x80x25mm 47CFM 2600RPM Ball Bearing:
Full Specifications:
Manufacturer: Ebm-papst
Part Number: 8312
Type: Axial Fan
Operating Voltage: 12VDC (Nominal)
Voltage Range: 6 VDC to 15 VDC
Dimensions: 80mm x 80mm x 25mm (Frame Size)
Airflow: 47 CFM (Cubic Feet per Minute), 80 m³/h
Speed: 2600 RPM (Revolutions Per Minute)
Bearing Type: Ball Bearing
Power Consumption: 1.4W
Current: 0.115A
Noise Level: 28 dBA
Static Pressure: 3.8 mmH2O
Material: Housing: Plastic (PBT), Impeller: Plastic (PA)
Connection: 2 Wire Leads (typically red for positive, black for negative)
Life Expectancy (L10 at 40°C): 70,000 hours
Operating Temperature Range: -20°C to +70°C
Weight: Approximately 70g
MTBF: 280,000 h
Key Features:
High Reliability: Ball bearing design ensures long lifespan and consistent performance.
Compact Size: Standard 80x80x25mm form factor for easy integration.
Efficient Airflow: Delivers 47 CFM for effective cooling.
Low Noise Operation: Operates at a relatively quiet 28 dBA.
Wide Operating Voltage Range: Functions reliably within a 6-15VDC range.
Durable Construction: Made with high-quality plastic materials.
Long Life Expectancy: 70,000 hours L10 life at 40°C.
Model Suitability:
Electronics Cooling: Ideal for cooling components in computers, servers, power supplies, and other electronic devices.
Telecommunications Equipment: Suitable for cooling network switches, routers, and other telecom hardware.
Industrial Control Cabinets: Provides ventilation and cooling for control panels and enclosures.
3D Printers: Used for cooling hotends and electronics in 3D printers.
Automotive Applications: Can be used in certain automotive cooling applications (within voltage and temperature specifications).
General Ventilation: Suitable for any application requiring a compact, reliable, and efficient 12VDC axial fan.
Small Appliances: Cooling for components in small appliances.
Projectors: Cooling for internal components.
* Medical Devices: (Provided appropriate certifications are met).
