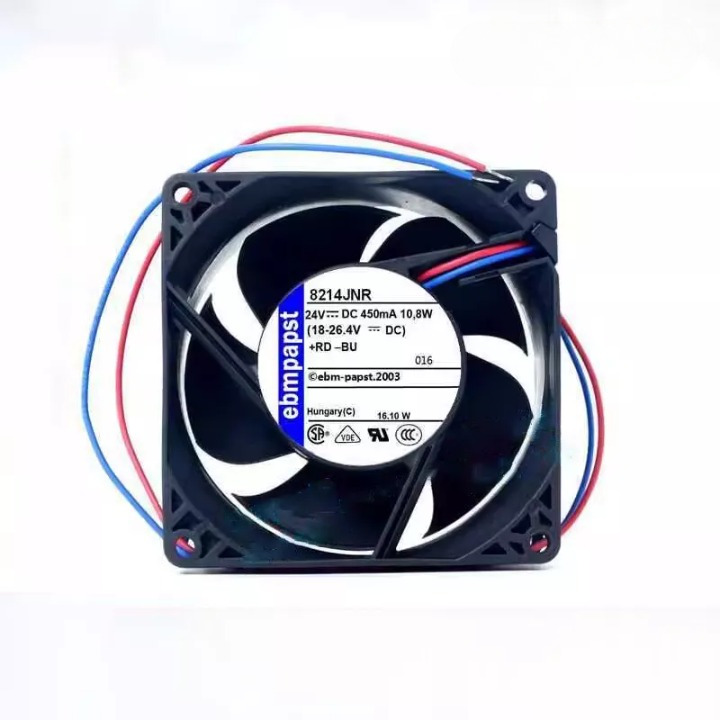

Ebm-papst 8214JNR Axial Fan 80x80x32mm 24VDC High Performance S-Force Series
$55.40
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 8214JNR Axial Fan 80x80x32mm 24VDC High Performance S-Force Series. Nominal voltage: 24 VDC, Power input: 18 W, Speed: 3400 RPM, Airflow: 160 CFM, Noise level: 47 dBA, Bearing type: Ball bearings, Material: Fiberglass-reinforced plastic, Protection class: IP20. Suitable for various applications including telecommunications, IT cooling, and industrial control cabinets.
Product: Ebm-papst 8214JNR FAN
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18 to 32 VDC
– Power input: 18 W
– Nominal current draw: 0.75 A
– Speed: 3400 RPM
– Airflow: 160 CFM (cubic feet per minute)
– Noise level: 47 dBA
– Bearing type: Ball bearings
– Fan frame size: 80 mm x 80 mm x 32 mm
– Weight: 0.3 kg
– Connection: Lead wires
– Material: Fiberglass-reinforced plastic
– Protection class: IP20
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 hours at 40°C
Key Features:
– Energy-efficient GreenTech EC motor
– Compact design for space-saving installation
– Low noise emission for quiet operation
– High-performance ball bearings for extended service life
– Advanced aerodynamic impeller design for optimal airflow
– Speed controllable via external PWM signal
– Robust and durable construction for industrial applications
– Integrated electronic protection against reverse polarity, blocking, and overloading
– Maintenance-free operation
Models Suitability:
The Ebm-papst 8214JNR FAN is suitable for a wide range of applications where reliable and efficient cooling is required. These include but are not limited to:
– Telecommunications equipment
– IT and server rack cooling
– Industrial control cabinets
– LED cooling systems
– Medical devices
– Automotive applications
– Variable speed drives
– Frequency converters
– Solar inverters
– Battery cooling systems
The fan’s versatility and robustness make it an ideal choice for demanding environments where consistent performance and longevity are critical.
