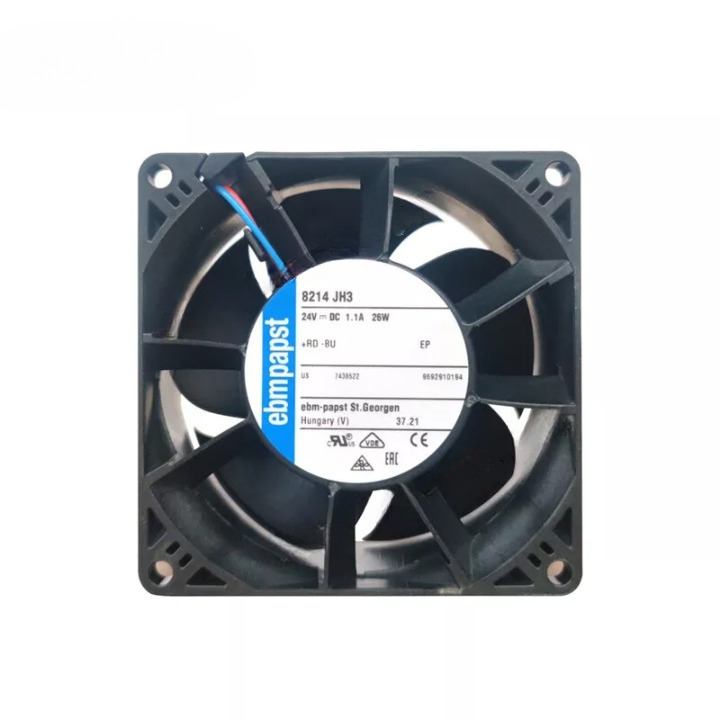

Ebm-papst 8214JH3 Axial Fan 80x80x38mm 24VDC High Performance with Speed Signal

Add your review

$68.98

Pricing: All prices are listed in U.S. dollars (USD).
Secure Payments: We process payments securely through PayPal and Stripe.
Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
International Shipping: For orders outside the U.S., please review our shipping policies for details.

Ebm-papst 8214JH3 Axial Fan 80x80x38mm 24VDC High Performance with Speed Signal:
– Nominal voltage: 24 VDC
– Power input: 18 W
– Speed: 3400 min^-1
– Air flow: 160 m³/h
– Static pressure: 137 Pa
– Noise level: 55 dB(A)
– Weight: 0.7 kg
– Housing material: Die-cast aluminum
– Blade material: Fiberglass-reinforced plastic
– Bearing type: Ball bearings
– Connection: Stripped wires
– Protection class: IP20
– Motor protection: Locked-rotor and reverse polarity protection
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 h at 40°C

SKU: 8214JH3 Categories: INDUSTRIAL AUTOMATION, Thermal Management Solutions Tags: -20°C to +70°C ambient temperature range, 000 Hours Expected Life, 24VDC, 65, 80x80x38mm, Air Flow 160 m³/h, Analog control, automotive applications, Axial Fan, ball bearings, Compact Design, die-cast aluminum housing, Ebm-papst 8214JH3, Fiberglass-reinforced Plastic Blades, Frequency Converters., GreenTech EC Motor, Heat Exchangers, High-Performance, Industrial Automation, industrial control cabinets, IP20 Protection Class, IT cooling, LED cooling, Locked-Rotor Protection, Low noise emission, maintenance-free bearings, Medical Devices, Noise Level 55 dB(A), Nominal Voltage 24VDC, Power input 18W, PWM control, Reverse Polarity Protection, Speed 3400 min^-1, Speed Signal, Static pressure 137 Pa, telecommunications equipment, Welding machines

Description

Product: Ebm-papst 8214JH3 FAN

Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 18 W
– Speed: 3400 min^-1
– Air flow: 160 m³/h
– Static pressure: 137 Pa
– Noise level: 55 dB(A)
– Weight: 0.7 kg
– Dimensions: 80 x 80 x 38 mm
– Housing material: Die-cast aluminum
– Blade material: Fiberglass-reinforced plastic
– Bearing type: Ball bearings
– Connection: Stripped wires
– Protection class: IP20
– Motor protection: Locked-rotor and reverse polarity protection
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 h at 40°C

Key Features:
– Energy-efficient GreenTech EC motor
– Compact design for space-saving installation
– Robust and durable construction for long service life
– High airflow and static pressure performance
– Low noise emission for quiet operation
– Speed controllable via analog (0-10V) or PWM signal
– Equipped with advanced electronic protection features
– Maintenance-free ball bearings for reliable operation
– Easy to integrate with various systems due to standard dimensions
– Compliant with relevant international standards (e.g., UL, CSA, VDE, CE)

Model Suitability:
The Ebm-papst 8214JH3 FAN is suitable for a wide range of applications where efficient cooling and ventilation are required. These include but are not limited to:
– Telecommunications equipment
– IT and server rack cooling
– Industrial control cabinets
– LED cooling systems
– Medical devices
– Automotive applications
– Compact heat exchangers
– Frequency converters
– Welding machines

The fan’s versatility and performance characteristics make it an ideal choice for designers and engineers looking to optimize thermal management in their systems while ensuring reliability and compliance with environmental standards.
