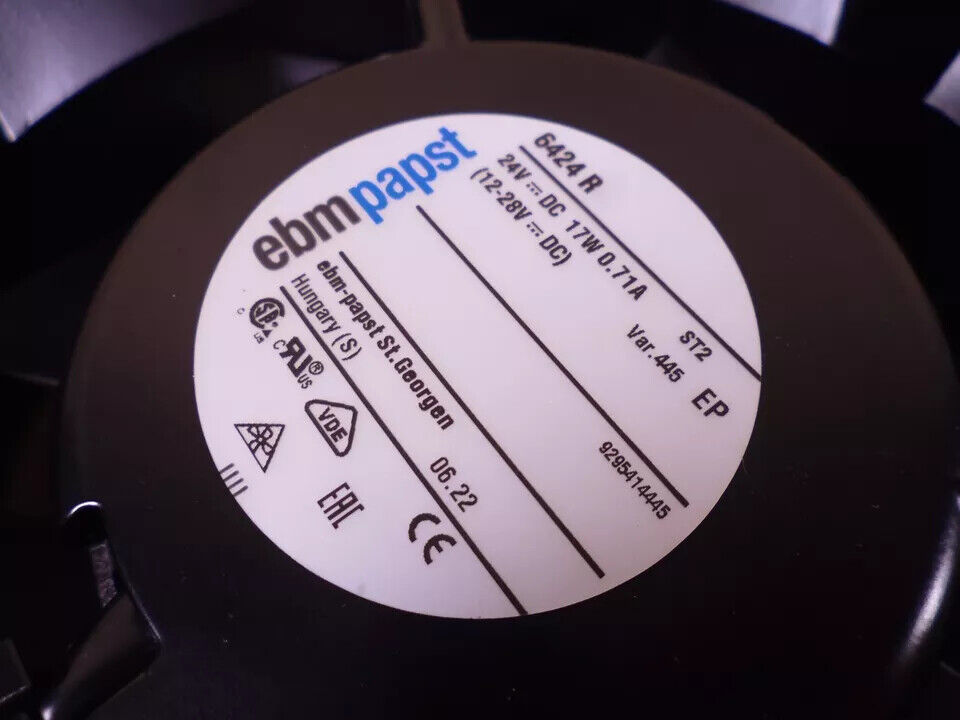

Ebm-papst 6424R Axial Fan 172x51mm 24VDC High Performance Sintec Sleeve Bearing
$104.67
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 6424R Axial Fan 172x51mm 24VDC High Performance Sintec Sleeve Bearing. Nominal voltage: 24 VDC, Power input: 18 W, Airflow: 160 CFM, Noise level: 55 dBA, Bearing type: Ball bearings, Dimensions: 172 x 51 mm, Expected life: 65,000 hours at 40°C. Suitable for industrial automation, IT servers, medical equipment, and more.
Product: Ebm-papst 6424R FAN
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 18 W
– Nominal speed: 3700 RPM
– Airflow: 160 CFM
– Noise level: 55 dBA
– Bearing type: Ball bearings
– Direction of rotation: Clockwise, viewed toward rotor
– Degree of protection: IP20
– Material: Fiberglass-reinforced plastic
– Fan blades: 7
– Connection: Terminal leads
– Weight: 0.9 kg
– Dimensions: 172 x 51 mm
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 hours at 40°C
Key Features:
– Energy-efficient GreenTech EC motor
– Compact design for space-saving installation
– Robust and maintenance-free ball bearing system
– High airflow and static pressure performance
– Low noise emission for noise-sensitive environments
– Speed-controllable via external control input
– Equipped with overheat protection (motor protection)
– Advanced aerodynamic design for optimal air movement
– Easy to install with terminal leads connection
– Long service life due to high-quality materials and manufacturing
Models Suitability:
The Ebm-papst 6424R FAN is suitable for a wide range of applications where reliable and efficient cooling is required. These include but are not limited to:
– Industrial automation and control cabinets
– Telecommunication systems
– IT and network servers
– Medical equipment
– Renewable energy systems (e.g., solar inverters)
– Automotive applications (e.g., battery cooling)
– HVAC systems
– Electronic equipment cooling
– Vending machines
The fan’s robust construction and high-performance specifications make it an ideal choice for demanding environments where consistent operation and longevity are critical.
