Ebm-papst 624/39HHPR Axial Fan 60x60x25mm 24VDC High Performance with Speed Signal
$55.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

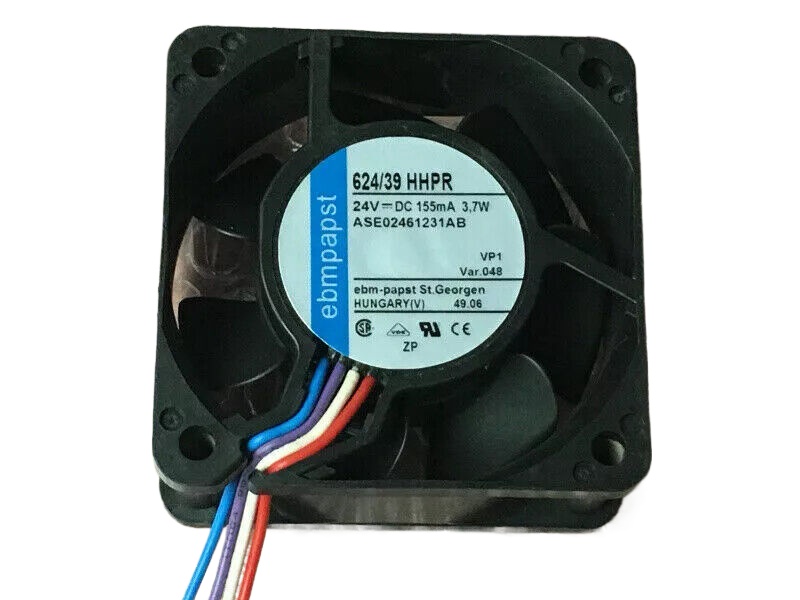

Ebm-papst 624/39HHPR Axial Fan is a high-performance compact fan with a 60x60x25mm frame size, 24VDC nominal voltage, 8700 RPM speed, and 38.3 CFM airflow. It features a ball bearing, fiberglass-reinforced plastic housing, and is suitable for various applications including telecommunications, IT cooling, and industrial control cabinets.
Product: Ebm-papst 624/39HHPR FAN
Full Specifications:
– Model: 624/39HHPR
– Manufacturer: Ebm-papst
– Product Type: Compact Fan
– Nominal Voltage: 24 VDC
– Operating Voltage Range: 18 to 28 VDC
– Power Consumption: 3.6 W
– Nominal Speed: 8700 RPM
– Air Flow: 38.3 CFM
– Noise Level: 47 dB(A)
– Bearing Type: Ball bearing
– Fan Frame Size: 60x60x25 mm
– Housing Material: Fiberglass-reinforced plastic
– Impeller Material: Fiberglass-reinforced PA plastic
– Protection Class: IP20
– Connection: 2 wires, stripped ends
– Weight: 0.1 kg
– Direction of Rotation: Clockwise, viewed toward rotor
– Life Expectancy: 65,000 hours at 40°C
– Operating Temperature Range: -20°C to +70°C
– Approval: UL, CSA, VDE, CE
Key Features:
– High-performance compact fan designed for longevity and reliability
– Energy-efficient operation with optimized aerodynamic design for maximum airflow
– Robust construction with high-quality ball bearings for continuous operation
– Low noise emission for use in noise-sensitive environments
– Easy to install with simple 2-wire connection
– Equipped with electronic commutation for extended service life
– Speed controllable via external PWM signal or DC voltage variation
– Resistant to harsh environmental conditions within its specified temperature range
Models Suitability:
The Ebm-papst 624/39HHPR FAN is suitable for a wide range of applications where efficient cooling and air circulation are required. These include but are not limited to:
– Telecommunications equipment
– IT and server rack cooling
– Industrial control cabinets
– LED cooling systems
– Medical devices
– Automotive applications
– Compact electronic devices requiring active cooling
– Any application where space is limited and high airflow with minimal noise is necessary
