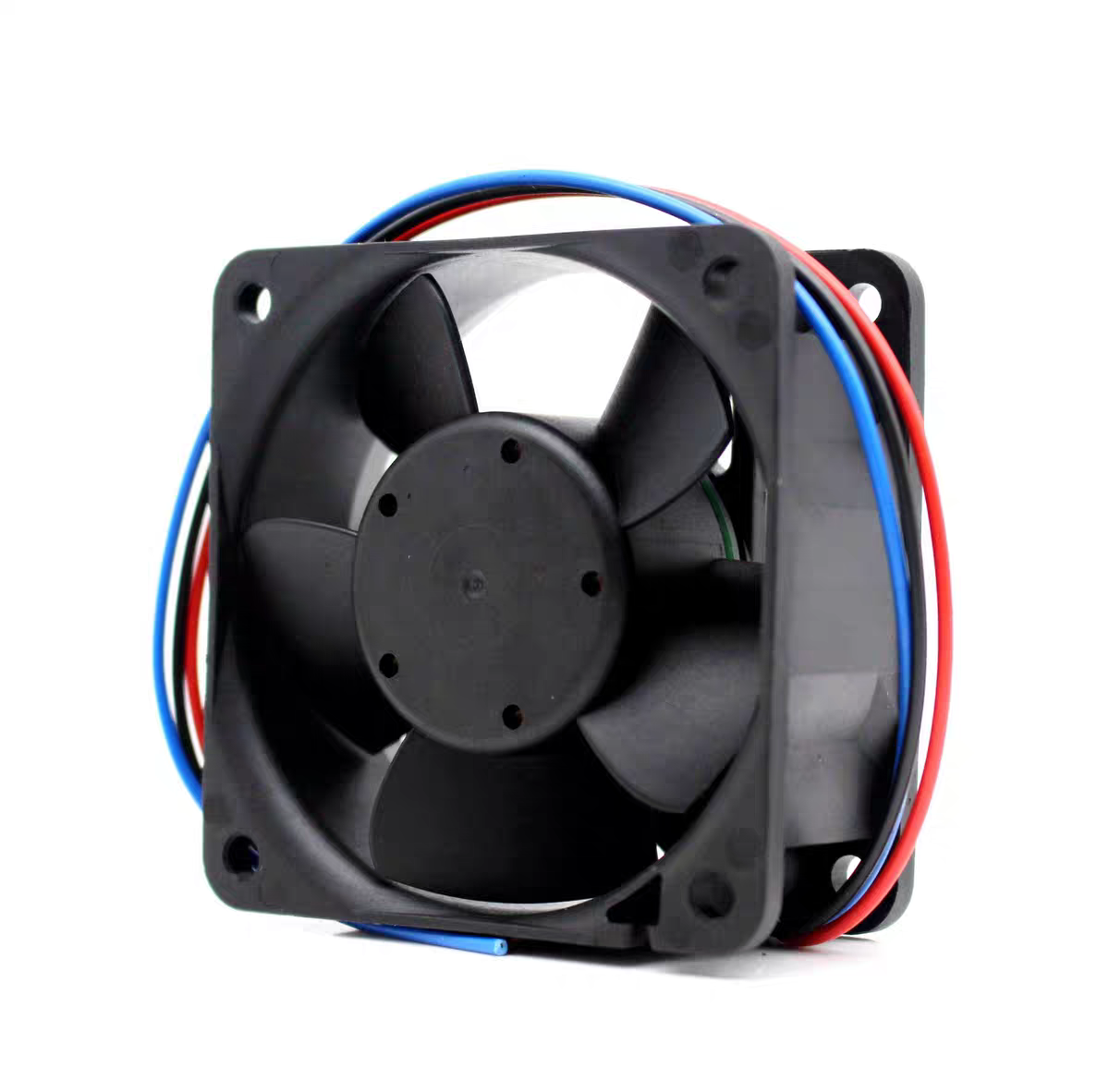

Ebm-papst 614G Axial Fan 60x60x25mm 24VDC High Performance Low Noise
$22.49
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 614G Axial Fan 60x60x25mm 24VDC High Performance Low Noise is a compact fan with dimensions of 60 x 60 x 25 mm. It operates at 24 VDC with a current draw of 0.125 A and power consumption of 3 W. With a speed of 4500 RPM, it provides an air flow of 23.5 CFM and a static pressure of 0.14 inch H2O. The fan has a noise level of 30 dBA and a ball bearing type for durability. It has an expected life of 65,000 hours at 40°C and is made of fiberglass-reinforced plastic with a PA impeller and housing of PBT. Weighing 0.1 kg, it has a protection class of IP20 and an ambient temperature range of -20°C to +70°C. The fan is approved by VDE, CSA, UL, and CE. Key features include S-Force high-performance technology, compact design, low noise emission, energy-efficient operation, robust construction, easy installation, maintenance-free operation, and protection against dust and contact. Suitable for cooling high-performance electronics in telecommunications, IT, and industrial sectors, it is also ideal for use in server racks, LED cooling, embedded systems, medical devices, automotive applications, control cabinets, and automation systems.
Product: Ebm-papst 614G Axial Fan 60x60x25mm 24VDC High Performance Low Noise
Full Specifications:
– Dimensions: 60 x 60 x 25 mm
– Operating Voltage: 24 VDC
– Current Draw: 0.125 A
– Power Consumption: 3 W
– Speed: 4500 RPM
– Air Flow: 23.5 CFM (Cubic Feet per Minute)
– Static Pressure: 0.14 inch H2O
– Noise Level: 30 dBA
– Bearing Type: Ball bearing
– Expected Life: 65,000 hours at 40°C
– Connection: 2 wires, stripped ends
– Material: Fiberglass-reinforced plastic; PA impeller, housing of PBT
– Weight: 0.1 kg
– Protection Class: IP20
– Ambient Temperature Range: -20°C to +70°C
– Approval: VDE, CSA, UL, CE
Key Features:
– S-Force high-performance technology for increased airflow and pressure
– Compact design suitable for high-density electronic applications
– Low noise emission for noise-sensitive environments
– Energy-efficient operation with optimized aerodynamic design
– Robust and durable construction with high-quality ball bearings
– Easy to install with stripped wire leads for power connection
– Maintenance-free and long service life due to high-quality components
– Protection against dust and contact as per IP20 standard
– Compliant with international safety standards
Models Suitability:
– Suitable for cooling high-performance electronics and components in telecommunications, IT, and industrial sectors.
– Ideal for use in compact spaces where efficient cooling is required without significant noise, such as server racks, LED cooling, and embedded systems.
– Applicable in medical devices where reliability and low acoustic noise are critical.
– Can be integrated into automotive applications, including charging systems or in-cabin electronics, where consistent thermal management is essential.
– Appropriate for use in control cabinets and automation systems to prevent overheating of sensitive electronic equipment.
