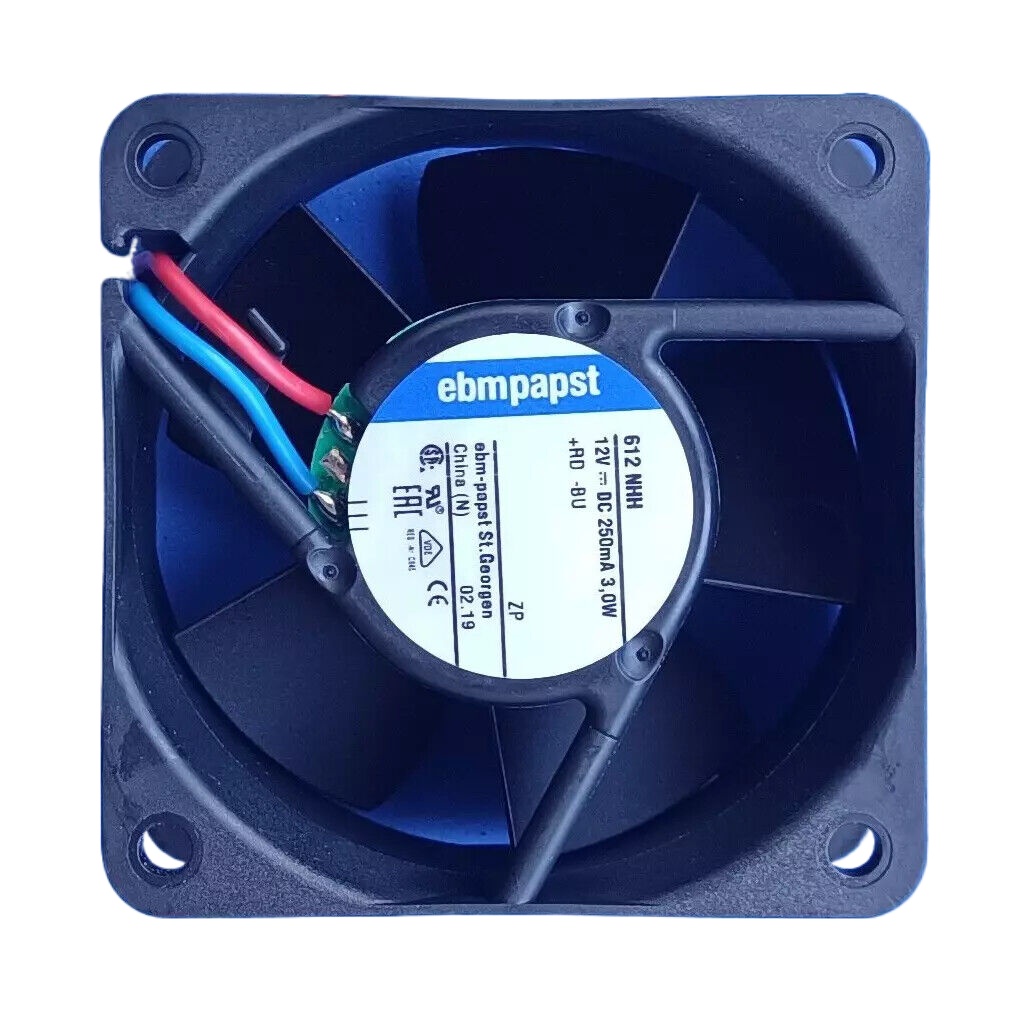

Ebm-papst 612NHH Axial Fan 60x60x25mm 12VDC High Speed 38.5CFM Ball Bearing
$40.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 612NHH Axial Fan 60x60x25mm 12VDC High Speed 38.5CFM Ball Bearing
Specifications:
– Dimensions: 60mm x 60mm x 25mm
– Voltage: 12 VDC
– Speed: 6800 RPM
– Air Flow: 38.5 CFM
– Noise Level: 47 dB(A)
– Bearing Type: Ball Bearing
– Expected Life: 65,000 hours
– Material: Fiberglass-reinforced plastic
– Termination: Lead wires
– Operating Temperature: -20°C to +70°C
– Approval: UL, CSA, VDE, CE
– RoHS Compliant: Yes
Key Features:
– High-speed performance
– Long service life
– Compact size
– High airflow and static pressure
– Low power consumption
– Quiet operation
– Motor protection features
– Durable construction
– Easy installation
– Suitable for continuous operation
Applications:
– Telecommunication systems
– Electronic equipment
– Industrial control cabinets
– LED lighting systems
– Automotive applications
– Medical devices
– Data center racks
– Compact cooling units
– High-performance computing systems
Product: Ebm-papst 612NHH Axial Fan 60x60x25mm 12VDC High Speed 38.5CFM Ball Bearing
Full Specifications:
– Dimensions: 60mm x 60mm x 25mm
– Voltage: 12 VDC
– Current: 290 mA
– Power Consumption: 3.48 W
– Speed: 6800 RPM
– Air Flow: 38.5 CFM (Cubic Feet per Minute)
– Static Pressure: 0.28 inch H2O
– Noise Level: 47 dB(A)
– Bearing Type: Ball Bearing
– Expected Life: 65,000 hours at 40°C
– Weight: 0.1 kg
– Material: Fiberglass-reinforced plastic; PA impeller, housing PBT
– Termination: Lead wires
– Motor Protection: Locked rotor protection and polarity protection
– Operating Temperature: -20°C to +70°C
– Storage Temperature: -40°C to +70°C
– Approval: UL, CSA, VDE, CE
– RoHS Compliant: Yes
Key Features:
– High-speed performance for maximum cooling efficiency
– Robust ball bearing design for long service life
– Compact size suitable for limited space applications
– High airflow and static pressure capabilities
– Low power consumption for energy efficiency
– Quiet operation despite high-speed rotation
– Equipped with motor protection features to prevent damage
– Durable construction with high-quality materials
– Easy to install with lead wire terminations
– Suitable for continuous operation
Models Suitability:
The Ebm-papst 612NHH Axial Fan is suitable for a wide range of applications where efficient cooling is required, including but not limited to:
– Telecommunication systems
– Electronic equipment
– Industrial control cabinets
– LED lighting systems
– Automotive applications
– Medical devices
– Data center racks
– Compact cooling units
– High-performance computing systems
– Any application requiring reliable and efficient air movement within a compact form factor
