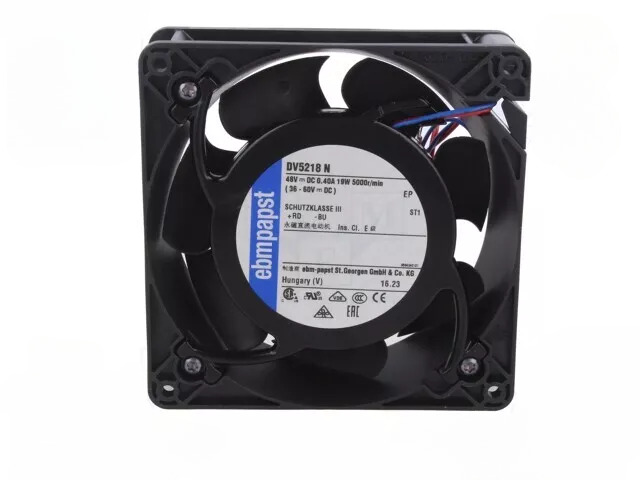

Ebm-papst 5218N Axial Fan 127x127x38mm 48VDC High Performance S-Force Series
$114.98
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 5218N Axial Fan 127x127x38mm 48VDC High Performance S-Force Series features a compact design with a 48VDC voltage, 6500 RPM speed, 160 CFM airflow, and 59 dB(A) noise level. It has a durable fiberglass-reinforced plastic construction, IP68 protection, and is suitable for various applications like industrial cooling, telecommunications, and automotive.
Product: Ebm-papst 5218N Axial Fan 127x127x38mm 48VDC High Performance S-Force Series
Full Specifications:
– Dimensions: 127 x 127 x 38 mm
– Nominal voltage: 48 VDC
– Product range: S-Force Series
– Speed: 6500 RPM (Revolutions Per Minute)
– Airflow: 160 CFM (Cubic Feet per Minute)
– Noise level: 59 dB(A)
– Bearing type: Ball bearing
– Weight: 0.5 kg
– Material: Fiberglass-reinforced plastic; impeller and housing
– Motor: Electronically commutated external rotor motor
– Protection class: IP68
– Ambient temperature range: -20°C to +70°C
– Expected life: 65,000 hours at 40°C
– Control input: PWM (Pulse Width Modulation) and Tach output
– Power consumption: 18 W
– Maximum pressure: 280 Pa (Pascals)
– Connection: Flying leads
Key Features:
– High-performance compact design for maximum airflow
– Energy-efficient EC motor technology
– Robust and durable construction suitable for demanding applications
– Advanced aerodynamic impeller design for superior pressure and airflow
– Low noise emission despite high airflow performance
– Speed controllable via PWM signal for precise thermal management
– Integrated electronics with protection features against reverse polarity, blocking, and overloading
– IP68 rated for high resistance to dust and water ingress
– Long service life with maintenance-free ball bearings
– Easy to install with versatile mounting options
Models Suitability:
– Industrial cooling systems
– Telecommunications equipment
– Data center cooling
– Automotive applications (engine cooling, HVAC)
– Medical imaging and laboratory equipment
– LED cooling systems
– Electronic cabinet cooling
– Renewable energy systems (solar inverters, battery cooling)
– High-density electronics cooling
– Aerospace and defense applications requiring rugged, high-performance cooling solutions
