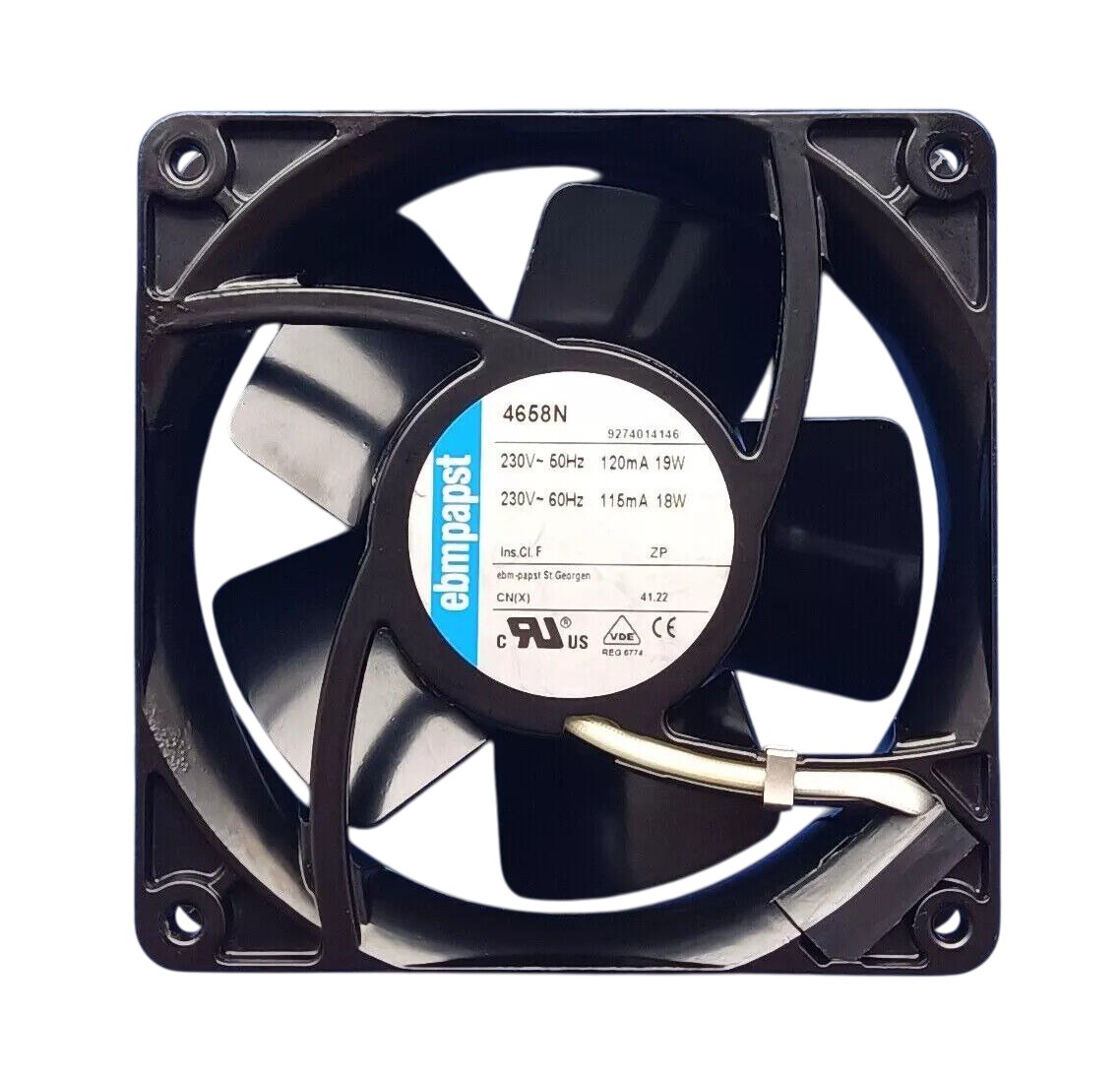

Ebm-papst 4658N Axial Fan 119x119x38mm 230VAC 160CFM Sleeve Bearing High Performance

Product: Ebm-papst 4658N Axial Fan

Specifications:
– Dimensions: 119 x 119 x 38 mm
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Power Input: 19 W
– Current Draw: 0.08 A
– Speed: 2650 RPM (at 50 Hz), 3100 RPM (at 60 Hz)
– Air Flow: 160 m³/h (at 50 Hz), 190 m³/h (at 60 Hz)
– Noise Level: 50 dB(A)
– Weight: 0.6 kg
– Connection: Terminal pins
– Housing Material: Die-cast aluminum
– Impeller Material: Sheet steel, coated in black
– Motor: Shaded-pole motor
– Protection Class: IP20
– Environmental Compliance: RoHS

Key Features:
– Sintec sleeve bearing for long service life
– High-quality construction ensuring reliability and durability
– Excellent air performance characteristics
– Compact and robust design
– Low noise emission for noise-sensitive environments
– Easy to install with terminal pins for quick electrical connection
– Maintenance-free operation
– Direction of rotation is clockwise, seen on rotor
– Temperature range: -20°C to +70°C

Model Suitability:
The Ebm-papst 4658N Axial Fan is suitable for a wide range of applications where efficient cooling or ventilation is required. These include but are not limited to:
– Control cabinet cooling
– Electronics cooling
– Telecommunications equipment
– Ventilation systems for machinery
– HVAC systems
– Refrigeration equipment
– Welding machines
– Inverter cooling

The fan’s robust construction and reliable performance make it an ideal choice for continuous operation in industrial environments. Its compatibility with various voltages and frequencies, along with its high air flow and low noise levels, ensure that the Ebm-papst 4658N can be integrated into equipment worldwide, adhering to international standards and meeting diverse operational requirements.
