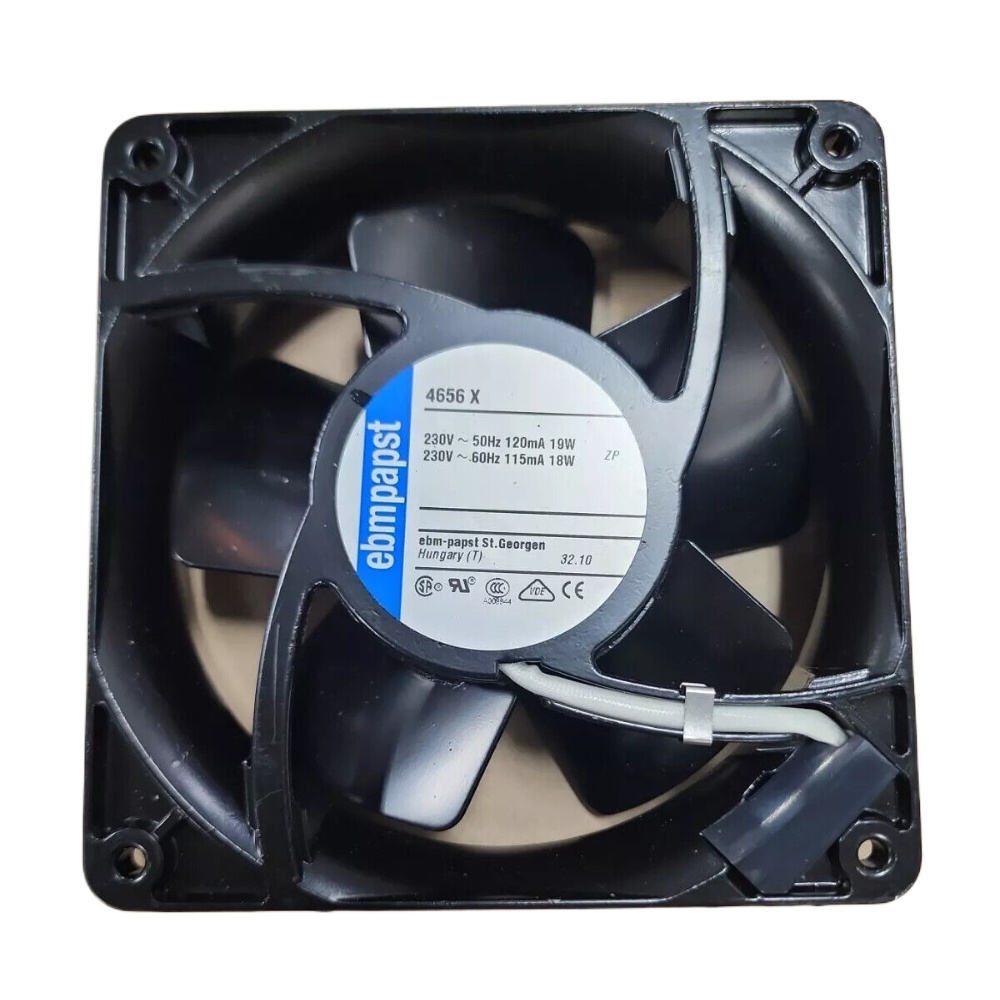

Ebm-papst 4656X Axial Fan 119x119x38mm 230VAC 160CFM Sleeve Bearing High Performance

Product: Ebm-papst 4656X FAN

Full Specifications:
– Nominal voltage: 230 VAC
– Frequency: 50/60 Hz
– Power input: 19 W
– Nominal current: 0.08 A
– Speed: 2650 RPM (50 Hz) / 3100 RPM (60 Hz)
– Airflow: 160 m³/h (94.2 CFM at 50 Hz) / 190 m³/h (111.9 CFM at 60 Hz)
– Noise level: 50 dBA (50 Hz) / 52 dBA (60 Hz)
– Temperature range: -10°C to +55°C
– Housing material: Die-cast aluminum
– Blade material: Sheet steel
– Weight: 1.0 kg
– Protection class: IP20
– Insulation class: “B”
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Mounting position: Any
– Direction of rotation: Counter-clockwise, seen on rotor
– Type of protection: Impedance protected
– Bearing type: Ball bearing
– Motor protection: Impedance protected
– Approvals: VDE, CSA, UL, CE
– Dimensions: 119 x 119 x 38 mm

Key Features:
– AC axial fan
– High airflow and static pressure
– Low noise emission
– Robust and durable design
– Maintenance-free ball bearings
– Long service life
– Easy to install with versatile mounting options
– Energy-efficient operation
– Impedance protection for motor safety
– Suitable for a wide range of ambient temperatures

Models Suitability:
The Ebm-papst 4656X FAN is suitable for a variety of applications including, but not limited to:
– Industrial control cabinets
– Telecommunications equipment
– IT and server rack cooling
– Electronic cooling systems
– HVAC systems
– Refrigeration
– Welding machines
– Medical devices
– Automotive applications
– Vending machines

This fan is designed to meet the cooling needs of devices and systems that require reliable air movement, ensuring optimal performance and extending the life of the equipment it serves.
