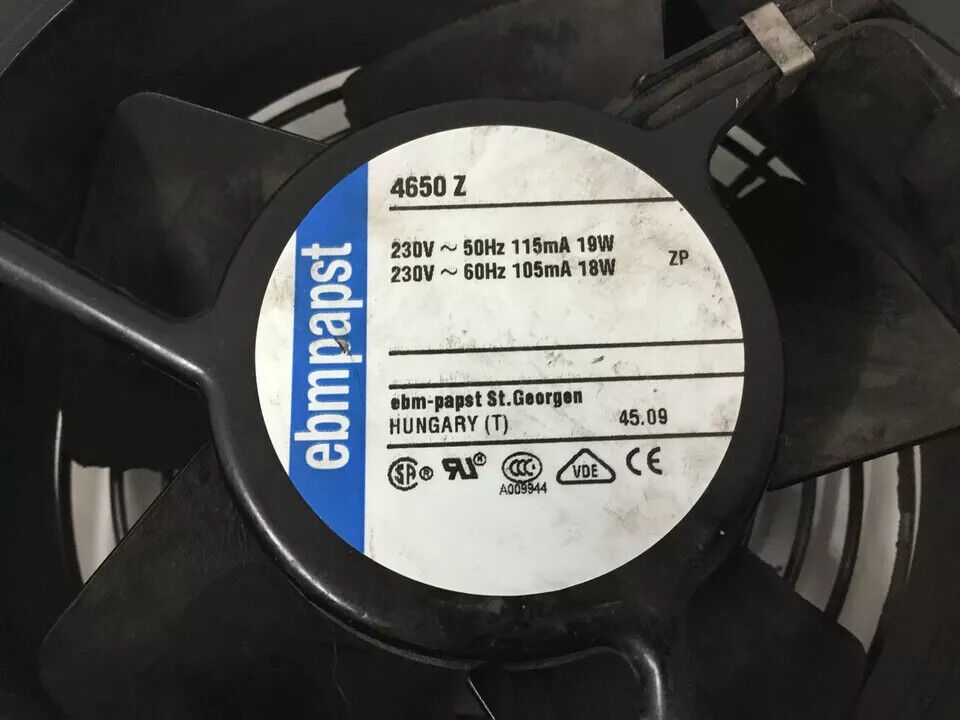

Ebm-papst 4650Z Axial Cooling Fan 119x119x38mm 230VAC 160CFM Sleeve Bearing
$49.25
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 4650Z Axial Cooling Fan
Full Description:
The Ebm-papst 4650Z Axial Cooling Fan is a high-performance fan with a robust design, featuring a die-cast aluminum housing and maintenance-free ball bearing system. It operates at 230VAC, with a power input of 19W and airflow of 160CFM. Suitable for various applications including industrial cooling systems and HVAC systems.
Product: Ebm-papst 4650Z FAN
Full Specifications:
– Nominal voltage: 230 VAC
– Frequency: 50/60 Hz
– Power input: 19 W
– Nominal current: 0.08 A
– Speed: 2650 RPM (50 Hz) / 2950 RPM (60 Hz)
– Airflow: 160 m³/h (94.2 CFM at 50 Hz) / 190 m³/h (111.9 CFM at 60 Hz)
– Noise level: 47 dB(A)
– Capacitor voltage: 400 V
– Weight: 0.7 kg (1.54 lbs)
– Impeller material: Sheet steel, coated in black
– Housing material: Die-cast aluminum
– Motor protection: Impedance protected
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Mounting position: Any
– Environmental protection: IP20
– Approval: VDE, CSA, UL, CE
– Insulation class: B
– Operating temperature range: -20°C to +70°C (-4°F to +158°F)
– Lifetime L10 at 40°C: 55,000 h
Key Features:
– S-Force high-performance technology for demanding applications
– Robust and compact design with die-cast aluminum housing
– Maintenance-free ball bearing system for long service life
– Energy-efficient operation with optimized aerodynamic impeller design
– Low noise emission due to specially shaped blades
– Easy to install with versatile mounting options
– Equipped with impedance protection to prevent motor burnout
– Suitable for continuous operation (S1)
– Can be used in a wide range of climatic conditions
Models Suitability:
The Ebm-papst 4650Z FAN is suitable for a variety of applications including but not limited to:
– Industrial cooling systems
– Ventilation systems
– Heat exchangers
– Control cabinet cooling
– Electronics cooling
– HVAC systems
– Welding machines
– Inverter cooling
– Refrigeration equipment
This fan is designed to meet the needs of applications requiring high airflow and reliability in industrial, commercial, and high-tech environments where consistent performance and durability are critical.
