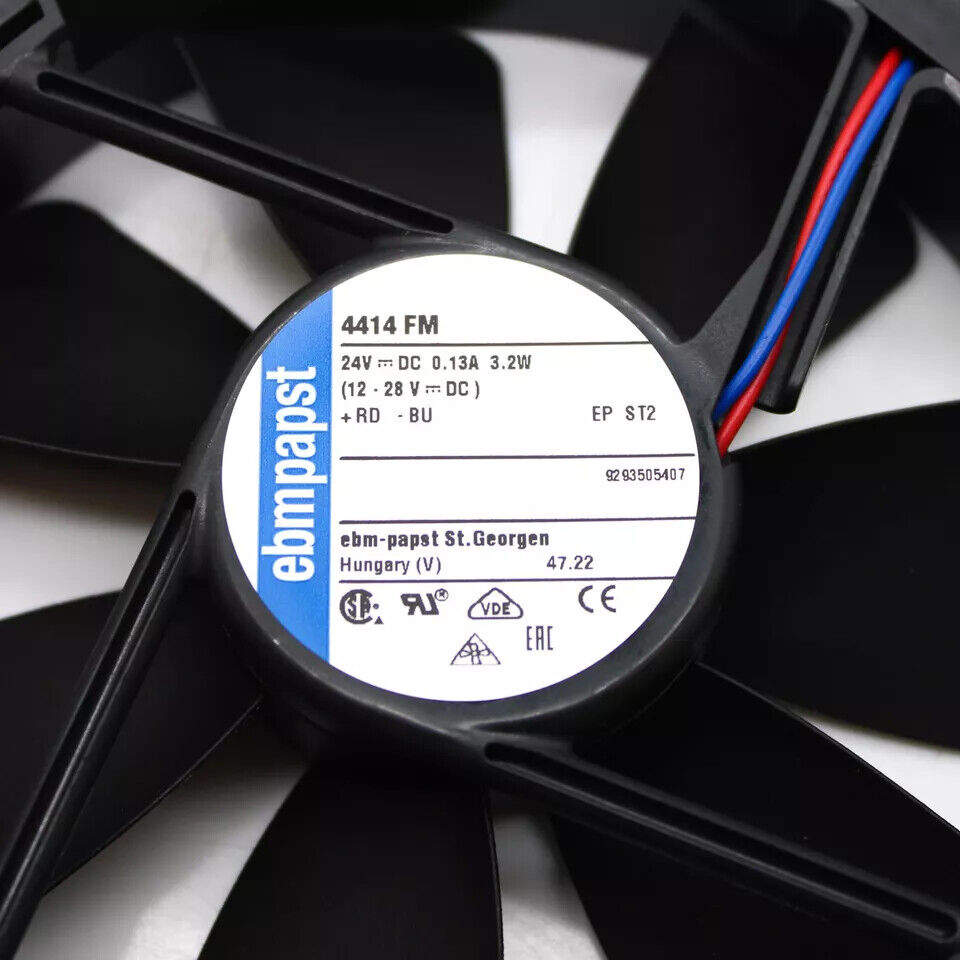

Ebm-papst 4414FM Axial Fan 119x119x38mm 24VDC 94.2CFM Ball Bearing High Performance

Add your review

$21.54

Pricing: All prices are listed in U.S. dollars (USD).
Secure Payments: We process payments securely through PayPal and Stripe.
Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
International Shipping: For orders outside the U.S., please review our shipping policies for details.

Ebm-papst 4414FM Axial Fan 119x119x38mm 24VDC 94.2CFM Ball Bearing High Performance. Nominal voltage: 24 VDC, Power input: 5.0 W, Speed: 2600 RPM, Airflow: 100 CFM, Noise level: 45 dBA, Bearing type: Sintec sleeve bearing, Material: Fiberglass-reinforced plastic, Direction of rotation: Counterclockwise, Protection class: IP20, Expected life: 50,000 hours at 40°C.

SKU: 4414FM Categories: INDUSTRIAL AUTOMATION, Thermal Management Solutions Tags: 000 Hours Expected Life, 100 CFM airflow, 119x119x38mm, 24VDC, 2600 RPM, 45 dB(A) noise level, 50, 94.2CFM, Aerodynamic Blade Design, automotive applications, Axial Fan, Ball bearing, Compact Design, control cabinets, Counterclockwise rotation, Data Center Cooling, Ebm-papst 4414FM, Energy-Efficient, Fiberglass-reinforced plastic, GreenTech EC Motor, High Airflow, High-Performance, Industrial Automation, industrial automation products., IP20 Protection Class, LED Lighting Systems, Locked-Rotor Protection, long service life, Low noise emission, maintenance-free, medical equipment, Overvoltage protection, PWM input compatibility, PWM Signal, reliable cooling solution, reliable performance, Renewable energy systems, Reverse Polarity Protection, Robust Construction, silent operation, Sintec Sleeve Bearing, Soft start functionality, Solar inverters, Space-Saving Installation., Static Pressure, Suitable for continuous operation, Telecommunication Systems, wide ambient temperature range

Description

Product: Ebm-papst 4414FM FAN

Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 5.0 W
– Speed: 2600 RPM
– Airflow: 100 CFM
– Noise level: 45 dBA
– Bearing type: Sintec sleeve bearing
– Connection: Stripped wires
– Fan size: 119 x 119 x 38 mm
– Weight: 0.5 kg
– Material: Fiberglass-reinforced plastic
– Direction of rotation: Counterclockwise, viewed toward rotor
– Protection class: IP20
– Ambient temperature range: -20°C to +70°C
– Expected life: 50,000 hours at 40°C

Key Features:
– Energy-efficient GreenTech EC motor
– Compact design for space-saving installation
– Low noise emission for quiet operation
– High airflow and static pressure performance
– Robust and durable construction
– Maintenance-free Sintec sleeve bearing system
– Advanced aerodynamic blade design
– Speed-controllable via external PWM signal
– Equipped with overvoltage protection
– Reverse polarity protection
– Locked-rotor protection
– Soft start functionality
– Can be operated in any mounting position

Models Suitability:
– Suitable for a wide range of cooling applications, including but not limited to:
– Industrial automation and control cabinets
– Telecommunication systems
– Data center cooling
– LED lighting systems
– Medical equipment
– Automotive applications
– Renewable energy systems (e.g., solar inverters)
– Compatible with various control systems due to its PWM input
– Ideal for applications requiring long service life and continuous operation
– Appropriate for use in environments with fluctuating temperature conditions due to its wide ambient temperature range.
