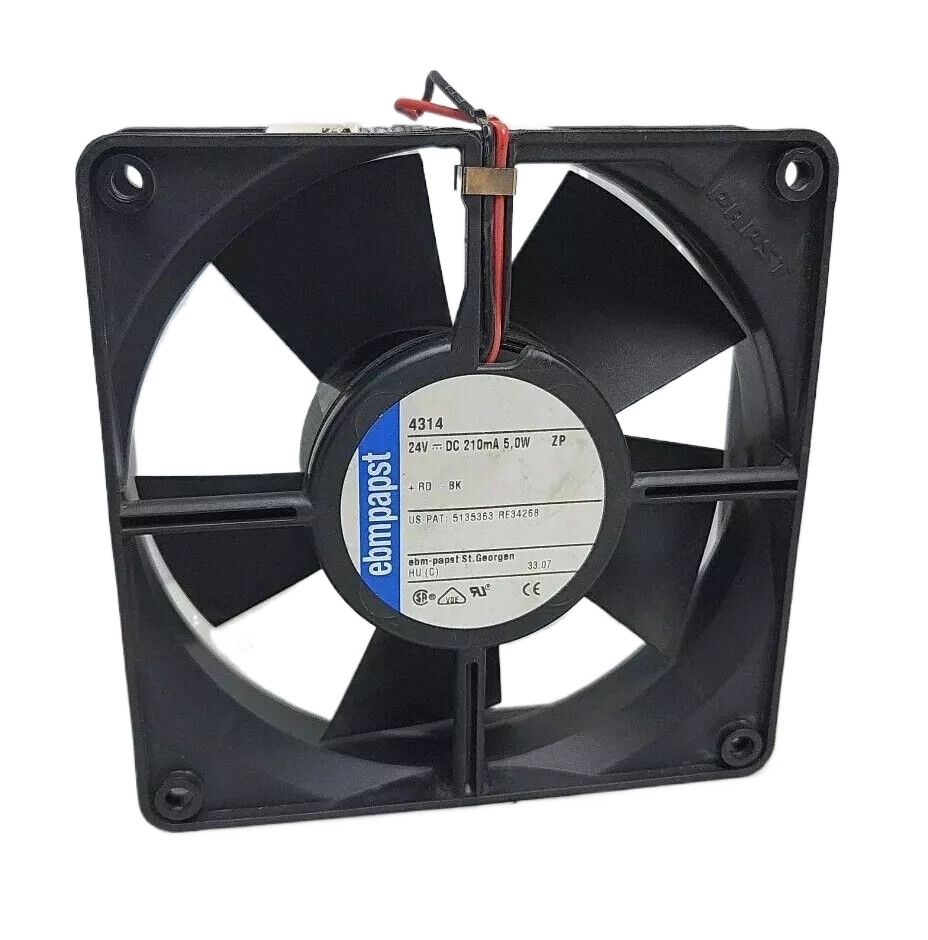

Ebmpapst 4314 Axial Fan 119x119x32mm 24VDC 100CFM IP20 Protection
$18.99
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Ebmpapst 4314 Axial Fan is a high-performance cooling solution measuring 119x119x32mm, operating at 24VDC, and delivering an airflow of 100 CFM with IP20 protection. This fan features a robust die-cast aluminum housing and a durable fiberglass-reinforced PA plastic impeller. It operates at a speed of 3350 RPM with a power consumption of 4.9 W and produces a sound pressure level of 45 dB(A). The fan is equipped with ball bearings for a long life expectancy of 62,500 hours at 40°C and is electronically protected against reverse polarity, locked rotor, and overload. It can operate within a temperature range of -20°C to +75°C and is approved by VDE, CSA, UL, and CE. The fan’s compact size and high airflow make it suitable for industrial control cabinets, telecommunications equipment, power supplies, HVAC systems, medical devices, 3D printers, and general electronics cooling.
Ebmpapst 4314 Axial Fan 119x119x32mm 24VDC 100CFM IP20 Protection
Full Specifications:
Dimensions: 119mm x 119mm x 32mm (Length x Width x Depth)
Nominal Voltage: 24 VDC
Voltage Range: 16…28 VDC
Airflow: 170 m³/h (100 CFM)
Speed: 3350 RPM
Power Consumption: 4.9 W
Sound Pressure Level: 45 dB(A)
Sound Power Level: 5.9 B
Bearing Type: Ball Bearing
Material of Impeller: Fiberglass-reinforced PA plastic
Material of Housing: Die-cast aluminum
Motor Protection: Electronically protected against reverse polarity, locked rotor, and overload.
Connection: Via single strands AWG 22, TR 64
Insulation Class: “B”
Approval: VDE, CSA, UL, CE
Operating Temperature Range: -20°C to +75°C
Life Expectancy (L10 at 40°C): 62,500 hours
Protection Rating: IP20
Weight: 0.320 kg
Key Features:
High Airflow: Delivers a substantial 100 CFM for effective cooling.
Robust Construction: Die-cast aluminum housing and fiberglass-reinforced plastic impeller ensure durability.
Long Life Expectancy: Ball bearing design provides extended operational life.
Motor Protection: Integrated electronic protection safeguards against common operational issues.
Wide Operating Temperature Range: Suitable for use in various environmental conditions.
Compact Size: Standard 119x119x32mm form factor for easy integration.
Multiple Approvals: Meets international safety and performance standards.
Model Suitability:
Industrial Control Cabinets: Cooling of PLCs, drives, and other electronic components.
Telecommunications Equipment: Maintaining optimal temperature in racks and enclosures.
Power Supplies: Dissipating heat from power supply units.
HVAC Systems: Assisting in air circulation and ventilation.
Medical Devices: Cooling of sensitive electronic components.
3D Printers: Cooling of electronics and print beds.
General Electronics Cooling: Any application requiring reliable 24VDC axial cooling within the specified parameters.
Server Racks.
* Networking Equipment.
