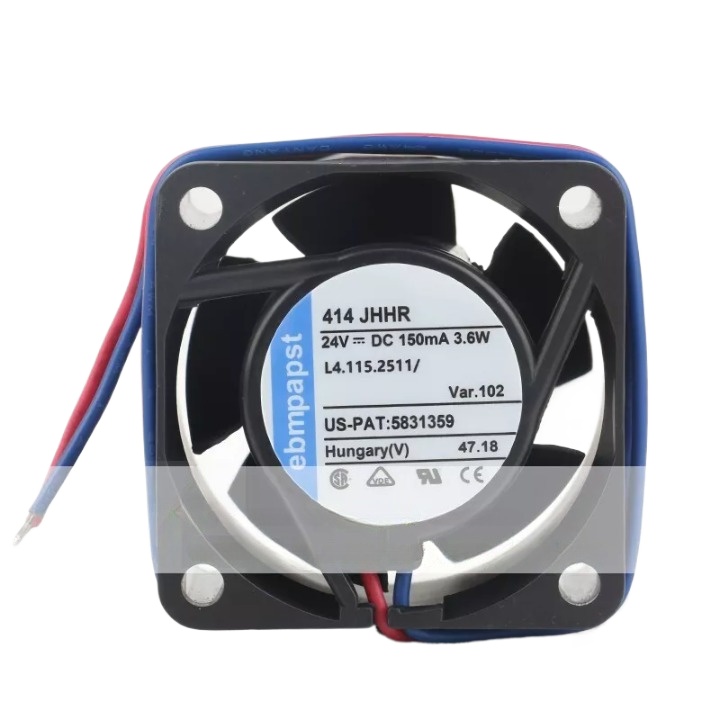

Ebm-papst 414JHHR Axial Fan 40x40x20mm 24VDC High Performance Ball Bearing
$24.98
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Ebm-papst 414JHHR Axial Fan is a 40x40x20mm 24VDC fan with high-performance ball bearings. It has an airflow of 8.9 CFM, operates at 9500 RPM, and has a noise level of 32 dBA. With a compact design, low power consumption, and advanced motor protection, it is suitable for various applications.
Product: Ebm-papst 414JHHR Axial Fan 40x40x20mm 24VDC High Performance Ball Bearing
Full Specifications:
– Dimensions: 40 x 40 x 20 mm
– Voltage: 24 VDC
– Bearing Type: Ball bearing
– Air Flow: 8.9 CFM (Cubic Feet per Minute)
– Speed: 9500 RPM (Revolutions per Minute)
– Noise Level: 32 dBA (Decibels)
– Power Consumption: 1.08 W (Watts)
– Current Draw: 0.045 A (Amps)
– Frequency: 400 Hz
– Weight: 20 g (Grams)
– Housing Material: Fiberglass-reinforced plastic
– Impeller Material: Fiberglass-reinforced PA (Polyamide)
– Motor Protection: Locked rotor protection and polarity protection
– Connection: 2 wires, stripped ends
– Operating Temperature Range: -20°C to +70°C
– Expected Life: 65,000 hours at 40°C
– Safety Approvals: VDE, CSA, UL, CE
– RoHS Compliant: Yes
Key Features:
– Compact and slim design for space-constrained applications
– High-performance ball bearings ensure long service life and reliability
– High airflow and static pressure capabilities for effective cooling
– Low power consumption for energy-efficient operation
– Low noise emission for use in noise-sensitive environments
– Robust construction with high-quality materials for durability in harsh conditions
– Advanced motor protection features to prevent damage and extend fan life
– Easy to install with stripped wire leads for quick electrical connection
– Suitable for continuous operation
Models Suitability:
The Ebm-papst 414JHHR Axial Fan is suitable for a wide range of applications where efficient cooling is required in a compact space. These include but are not limited to:
– Telecommunication systems
– Electronic equipment
– Industrial automation and control cabinets
– LED lighting systems
– Medical devices
– Portable instrumentation
– Servers and data centers
– Automotive applications
– Aerospace and avionics systems
