Ebm-papst 3414NH Axial Fan 92x92x25mm 24VDC 41CFM Ball Bearing
$77.30
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Ebm-papst 3414NH Axial Fan is a compact 92x25mm fan with a durable ball bearing system, providing moderate airflow of 41 CFM. It operates quietly, has a wide voltage range, and is suitable for various applications like control cabinet cooling and IT equipment ventilation.

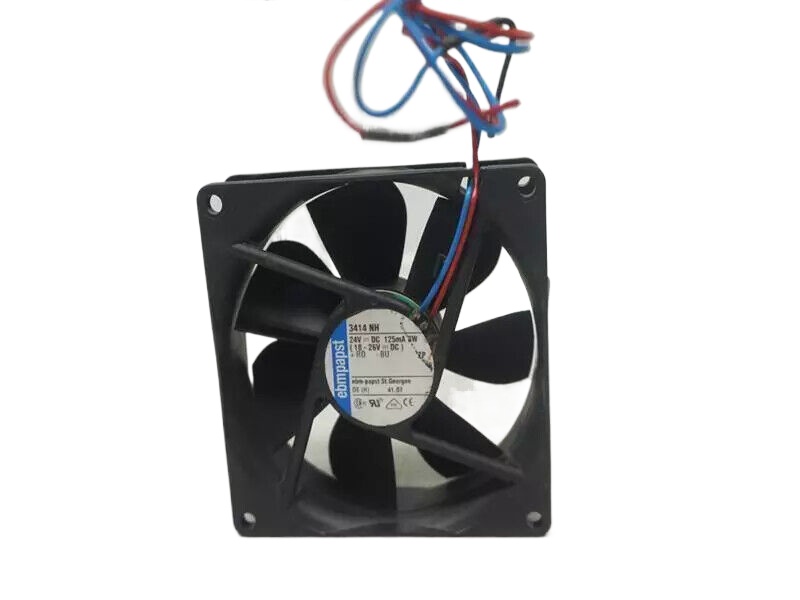

Ebm-papst 3414NH Axial Fan 92x92x25mm 24VDC 41CFM Ball Bearing
Full Specifications:
Manufacturer: Ebm-papst
Part Number: 3414NH
Fan Type: Axial DC Compact Fan
Dimensions: 92 mm x 92 mm x 25 mm (L x H x W)
Operating Voltage: 24 VDC
Voltage Range: 16 VDC to 30 VDC
Airflow: 41 CFM (Cubic Feet per Minute) / 70 m³/h (Cubic Meters per Hour)
Nominal Speed: 3000 RPM (Revolutions Per Minute)
Power Input: 2.4 Watts
Current Consumption: 0.1 Amps (100 mA)
Bearing System: Ball Bearing
Acoustic Noise Level: 33 dB(A)
Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
Life Expectancy (L10 at 40°C): 62,500 hours
Life Expectancy (MTBF at 40°C): 120,000 hours
Housing Material: Fiberglass-Reinforced PBT Plastic (UL 94 V-0)
Impeller Material: Fiberglass-Reinforced PA Plastic (UL 94 V-0)
Weight: 95 grams (approx. 0.21 lbs)
Connection: 2x Lead Wires, AWG 24, TR 64, stripped and tinned ends
Direction of Rotation: Clockwise, viewed looking towards rotor
Direction of Airflow: Air exhaust over struts
Protection: Locked-rotor and reverse polarity protection
Approvals: CE, UL, CSA, VDE
Key Features:
High-efficiency brushless DC motor.
Durable ball bearing system for extended service life and reliability.
Compact 92x25mm industry-standard frame size.
Moderate airflow (41 CFM) suitable for targeted cooling.
Relatively low noise operation for its performance class.
Wide operating voltage and temperature range for versatile deployment.
Robust construction with flame-retardant materials.
Integrated electronic protection against common electrical faults.
Models Suitability / Application Areas:
Control cabinet and enclosure cooling.
Server rack and IT equipment ventilation.
Power supply units (
