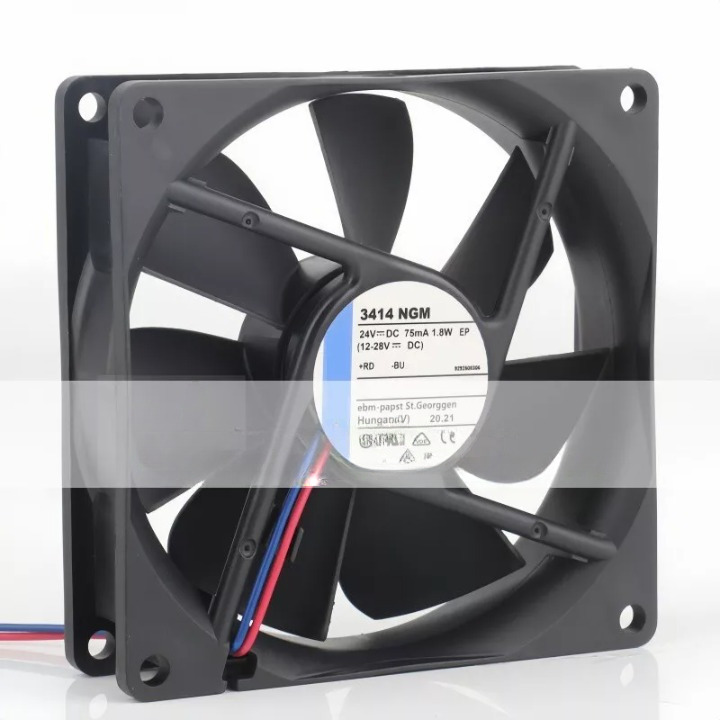

Ebmpapst 3414NGM Axial Fan 92x92x25mm 24VDC 70CFM Ball Bearing
$24.58
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Ebmpapst 3414NGM Axial Fan is a 92x92x25mm fan with a voltage rating of 24VDC, airflow of 70 CFM, and ball bearing type. It operates at 3750 RPM, consumes 3.4 Watts, and has a noise level of 40 dB(A). Suitable for industrial control panels, telecommunication racks, server cooling, power supply units, and medical equipment.
Ebmpapst 3414NGM Axial Fan 92x92x25mm 24VDC 70CFM Ball Bearing
Full Specifications:
Manufacturer: Ebmpapst
Part Number: 3414NGM
Fan Type: Axial DC Compact Fan
Series: 3400N
Dimensions: 92 mm (Length) x 92 mm (Height) x 25 mm (Width)
Voltage Rating: 24 VDC
Operating Voltage Range: 16 VDC to 30 VDC
Airflow: 70 CFM (Cubic Feet per Minute) / 119 m³/h (Cubic Meters per Hour)
Static Pressure: 0.24 in H₂O / 60 Pa
Bearing Type: Ball Bearing
Speed: 3750 RPM (Revolutions Per Minute)
Power Input: 3.4 Watts
Current Consumption: 140 mA (0.14 A)
Noise Level: 40 dB(A)
Housing Material: Fiberglass-Reinforced Plastic (PBT – Polybutylene Terephthalate)
Impeller Material: Fiberglass-Reinforced Plastic (PA – Polyamide)
Termination: 2 Lead Wires (AWG 24, TR 64, Stripped and Tinned)
Weight: 110 grams (approx. 3.9 oz)
Operating Temperature Range: -20°C to +70°C
Life Expectancy (L10 at 40°C): 62,500 hours
Protection: Locked-rotor protection, Reverse polarity protection
Approvals: UL, CSA, VDE, CE
Key Features:
High Performance: Delivers significant airflow (70 CFM) for effective cooling in demanding applications.
Reliability: Equipped with long-life ball bearings, suitable for continuous operation and extended service intervals.
Compact Standard Size: Industry-standard 92x25mm frame allows for easy integration and replacement.
Durable Construction: Robust fiberglass-reinforced plastic housing and impeller resist environmental factors.
Wide Operating Range: Functions reliably across a broad voltage (16-30VDC) and temperature (-20°C to +70°C) spectrum.
Integrated Safety: Built-in protection against common electrical faults like locked rotors and reverse polarity.
Energy Efficient: Consumes only 3.4W of power for its airflow output.
Models Suitability:
Industrial control panels and enclosures
Telecommunication racks and equipment
Server cooling and IT infrastructure
Power supply units (PSUs) and Uninterruptible Power Supplies (UPS)
Medical diagnostic and imaging equipment
