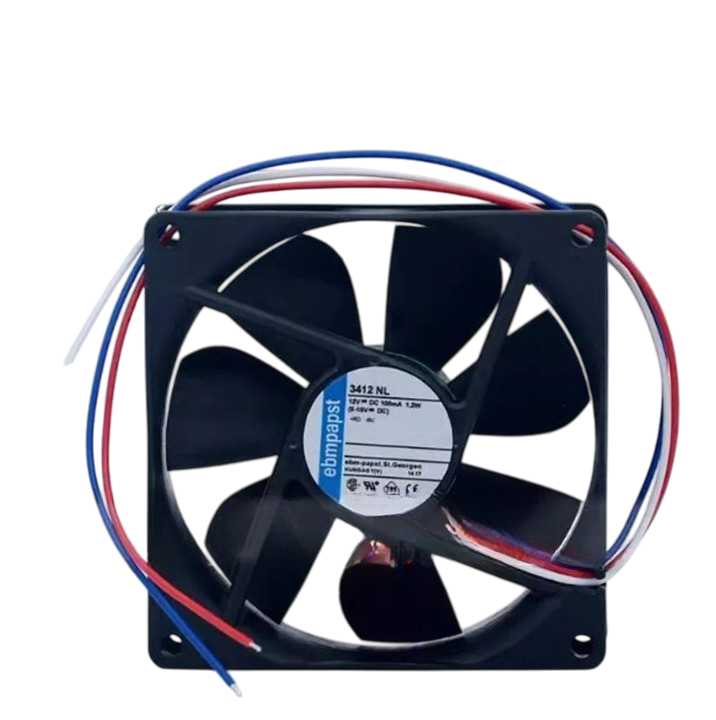

Ebm-papst 3412NL Axial Fan 92x92x25mm 12VDC 41CFM Ball Bearing
$37.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Ebm-papst 3412NL Axial Fan is a 92x92x25mm fan with 12VDC, 41CFM airflow, and ball bearing system. It operates quietly at 32 dBA, with a durable plastic housing and impeller. Suitable for PC cooling, NAS devices, servers, and more. Ideal for DIY projects or as a replacement fan.
Ebm-papst 3412NL Axial Fan 92x92x25mm 12VDC 41CFM Ball Bearing
Full Specifications:
Manufacturer: Ebm-papst
Model Number: 3412NL
Fan Type: Axial DC Fan
Dimensions: 92 mm (Length) x 92 mm (Height) x 25 mm (Width)
Operating Voltage: 12 VDC
Voltage Range: 8 – 14 VDC
Nominal Airflow: 41 CFM (Cubic Feet per Minute) / approx. 70 m³/h
Bearing System: Ball Bearing
Rated Speed: Approx. 2850 RPM
Power Consumption: Approx. 1.8 W
Current Draw: Approx. 0.15 A
Acoustic Noise: Approx. 32 dBA
Static Pressure: Approx. 35 Pa / 0.14 in H₂O
Connection: 2x AWG 24 Wire Leads, stripped and tinned ends
Weight: Approx. 95 g
Housing Material: Fiberglass-Reinforced PBT Plastic (UL 94 V-0)
Impeller Material: Fiberglass-Reinforced PA Plastic
Operating Temperature Range: -20°C to +70°C
Expected Lifespan (L10 at 40°C): Approx. 62,500 hours
Protection: Locked-rotor and reverse polarity protection.
Key Features:
Reliable Performance: High-quality ball bearings ensure long operational life and consistent performance, suitable for continuous operation.
Standard Frame Size: 92x25mm dimensions allow for compatibility with common mounting points.
Efficient Cooling: Delivers 41 CFM airflow, effective for targeted cooling or enclosure ventilation.
DC Powered: Operates on standard 12VDC, common in electronics and computer systems.
Durable Construction: Robust plastic housing and impeller materials provide resilience.
Low Noise Operation: Engineered for relatively quiet performance at 32 dBA.
Integrated Protection: Features safeguard against common electrical faults.
Model Suitability / Applications:
PC Case Cooling (Intake/Exhaust)
CPU Heatsink Cooling (where 92mm fans are supported)
Power Supply Unit (PSU) Cooling
Network Attached Storage (NAS) Devices
Small Server / Rack Component Cooling
Networking Equipment (Switches, Routers)
Industrial Control Panels and Enclosures
Audio/Video Amplifiers and Receivers
DIY Electronics Projects requiring active cooling
* Replacement fan for devices specifying a 92x25mm 12VDC
