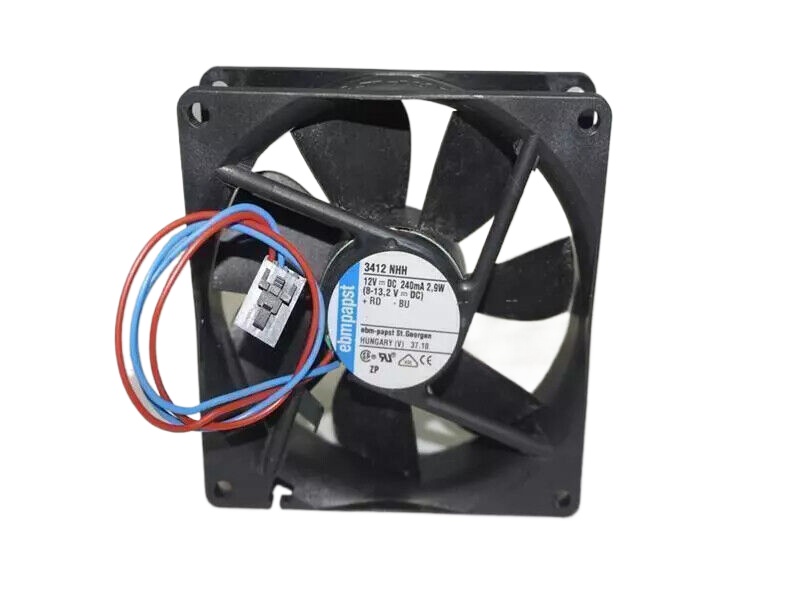

Ebm-papst 3412NHH Axial Fan 92x92x25mm 12VDC 53CFM Ball Bearing
$71.16
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 3412NHH Axial Fan 92x92x25mm 12VDC 53CFM Ball Bearing
Specifications:
Manufacturer: Ebm-papst
Model: 3412NHH
Fan Type: Axial DC Compact Fan
Series: 3400N
Dimensions: 92 mm (L) x 92 mm (H) x 25 mm (W)
Operating Voltage: 12 VDC
Voltage Range: 8 – 14 VDC
Airflow: 53 CFM / 90 m³/h
Bearing Type: Ball Bearing
Rated Speed: 3200 RPM
Power Input: 3.4 W
Current Draw: 0.28 A
Noise Level: 38 dBA
Static Pressure: 0.22 in H₂O / 55 Pa
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Termination: 2x Lead Wires (AWG 24, TR 64), stripped and tinned ends
Weight: 95 g
Operating Temperature Range: -20°C to +70°C
Life Expectancy (L10 at 40°C): 62,500 hours
Life Expectancy (MTBF at 40°C): 120,000 hours
Protection: Locked-rotor and reverse polarity protection
Approvals: UL, CSA, VDE, CE
Key Features:
– High Performance: 53 CFM airflow
– Durability: Ball bearing system for extended lifespan
– Compact Standard Size: 92x25mm frame
– Efficient DC Operation: 12VDC power
Ebm-papst 3412NHH Axial Fan 92x92x25mm 12VDC 53CFM Ball Bearing
Specifications:
Manufacturer: Ebm-papst
Model: 3412NHH
Fan Type: Axial DC Compact Fan
Series: 3400N
Dimensions: 92 mm (L) x 92 mm (H) x 25 mm (W)
Operating Voltage: 12 VDC
Voltage Range: 8 – 14 VDC
Airflow: 53 CFM (Cubic Feet per Minute) / 90 m³/h
Bearing Type: Ball Bearing
Rated Speed: 3200 RPM (Revolutions Per Minute)
Power Input: 3.4 W
Current Draw: 0.28 A
Noise Level: 38 dBA
Static Pressure: 0.22 in H₂O / 55 Pa
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Termination: 2x Lead Wires (AWG 24, TR 64), stripped and tinned ends
Weight: 95 g (approx. 0.21 lbs)
Operating Temperature Range: -20°C to +70°C
Life Expectancy (L10 at 40°C): 62,500 hours
Life Expectancy (MTBF at 40°C): 120,000 hours
Protection: Locked-rotor and reverse polarity protection
Approvals: UL, CSA, VDE, CE
Key Features:
High Performance: Delivers significant airflow (53 CFM) for effective cooling in its size class.
Durability: Ball bearing system ensures extended operational lifespan and reliability, suitable for continuous operation and higher ambient temperatures compared to sleeve bearings.
Compact Standard Size: 92x25mm frame is widely used in various electronic enclosures.
Efficient DC Operation: Operates on standard 12VDC power, common in electronics.
