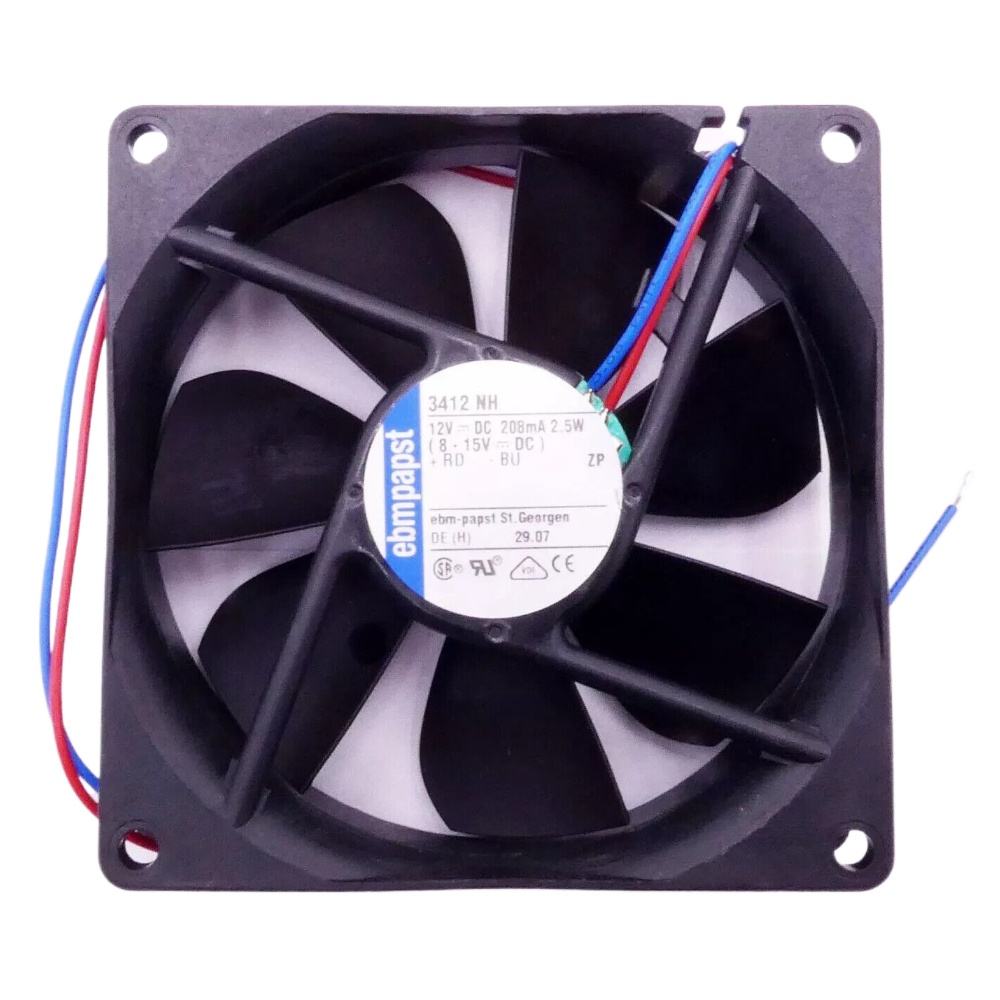

Ebmpapst 3412NH Axial Fan 12VDC 82.4CFM 44dBA 92x92x32mm Ball Bearing
$93.84
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebmpapst 3412NH Axial Fan 12VDC 82.4CFM 44dBA 92x92x32mm Ball Bearing
Manufacturer: Ebmpapst
Model Number: 3412NH
Fan Type: Axial
Operating Voltage: 12 VDC
Airflow: 82.4 CFM
Noise Level: 44 dBA
Speed: 3750 RPM
Dimensions: 92x92x32mm
Bearing Type: Ball Bearing
Weight: 170g
Approvals: UL, CSA, VDE, CE
Ebmpapst 3412NH Axial Fan 12VDC 82.4CFM 44dBA 92x92x32mm Ball Bearing
Full Specifications:
Manufacturer: Ebmpapst
Model Number: 3412NH
Fan Type: Axial
Operating Voltage: 12 VDC
Voltage Range: 8 – 14 VDC
Airflow: 82.4 CFM (Cubic Feet per Minute) / 140 m³/h (Cubic Meters per Hour)
Static Pressure: 0.261 in H₂O / 65 Pa
Noise Level: 44 dBA
Speed: 3750 RPM (Revolutions Per Minute)
Power Input: 3.6 W
Current Draw: 0.3 A
Dimensions: 92 mm x 92 mm x 32 mm (Length x Width x Thickness)
Housing Material: Fiberglass-Reinforced Plastic (PBT)
Impeller Material: Fiberglass-Reinforced Plastic (PA)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (Typically Red +, Black -)
Operating Temperature: -20°C to +70°C
Life Expectancy (L10 at 40°C): Approx. 62,500 hours
Weight: Approx. 170 g
Approvals: UL, CSA, VDE, CE
Key Features:
High Airflow: Delivers a substantial 82.4 CFM for effective cooling in demanding applications.
Standard DC Voltage: Operates on common 12VDC power systems.
Durable Construction: Robust plastic housing and impeller suitable for various environments.
Ball Bearings: Offers longer lifespan and higher temperature tolerance compared to sleeve bearings.
Compact Size: Standard 92mm frame with a 32mm depth for versatile integration.
Moderate Noise Level: 44 dBA provides significant cooling power, suitable where noise is a secondary concern to performance.
Reliability: Known Ebmpapst quality and long operational life expectancy.
Models Suitability:
Electronics Enclosures: Cooling densely packed components in industrial control cabinets, power supplies, and communication racks.
Server/Networking Gear: Supplemental or replacement cooling in 1U/2U servers, switches, or routers requiring high airflow in a 92mm form factor.
Automation Equipment: Heat dissipation in PLCs, motor drives, and robotic systems.
Telecommunications: Temperature management in base stations or network infrastructure hardware.
High-Performance Computing: Spot cooling for specific components or chassis airflow where space allows for a 92x32mm fan.
* DIY Projects: Applications requiring robust 12V cooling with high CFM output.
