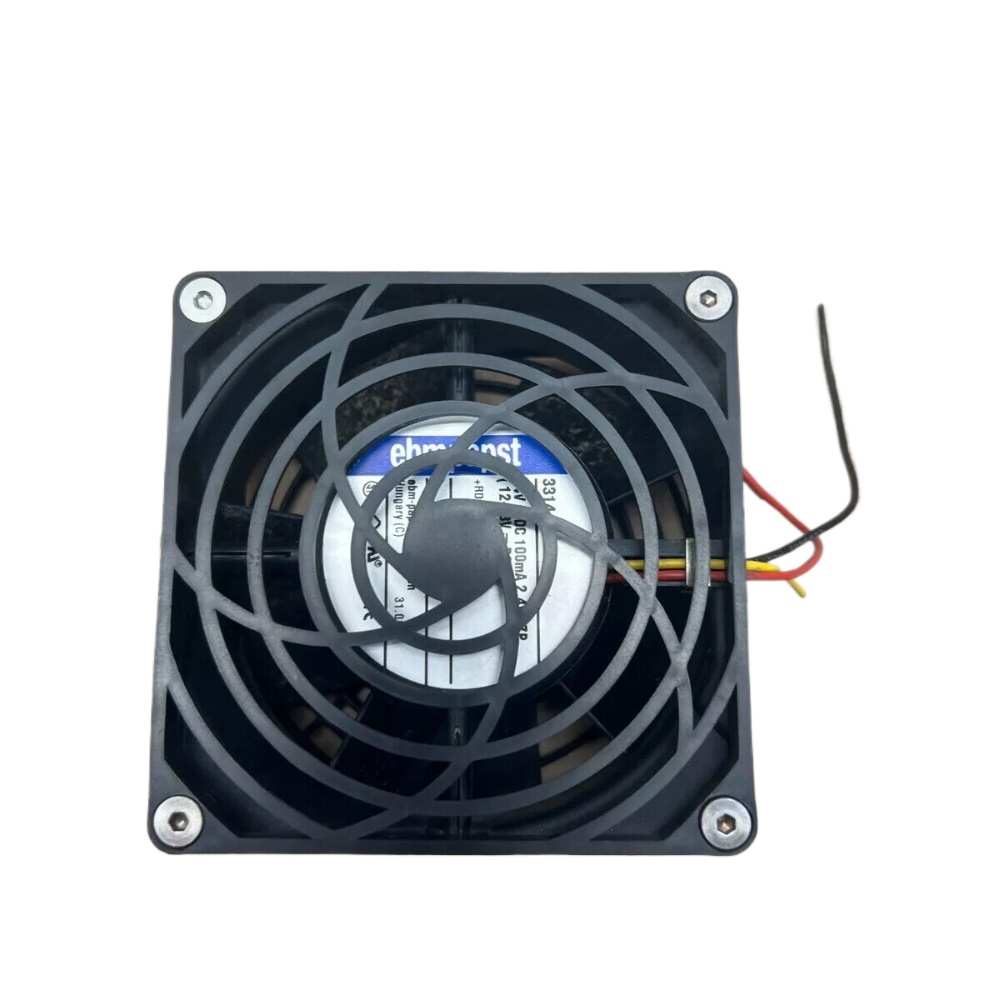

Ebmpapst 3314S Axial Fan 24VDC 106CFM 92x92x32mm High Performance Cooling
$32.35
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebmpapst 3314S Axial Fan 24VDC 106CFM 92x92x32mm High Performance Cooling:
– Manufacturer: Ebmpapst
– Part Number: 3314S
– Fan Type: Axial Fan
– Operating Voltage: 24VDC
– Airflow: 106 CFM
– Dimensions: 92mm x 92mm x 32mm
– Current Draw: 0.23A
– Power Consumption: 5.5W
– Speed: 4500 RPM
– Noise Level: 45 dBA
– Bearing Type: Ball Bearing
– Material: Housing: Die-cast aluminum; Impeller: Fiberglass-reinforced PA plastic
– Termination: 2 leads, stripped ends
– Operating Temperature Range: -20°C to +75°C
– Life Expectancy (L10 at 40°C): 70,000 hours
– Static Pressure: 0.39 in H2O
– Weight: Approximately 200g
– Protection: Electronically protected against reverse polarity, locked rotor, and overload.
Ebmpapst 3314S Axial Fan 24VDC 106CFM 92x92x32mm High Performance Cooling:
Full Specifications:
Manufacturer: Ebmpapst
Part Number: 3314S
Fan Type: Axial Fan
Operating Voltage: 24VDC (Nominal)
Voltage Range: 16…28 VDC
Airflow: 106 CFM (180 m³/h)
Dimensions: 92mm x 92mm x 32mm (3.62″ x 3.62″ x 1.26″)
Current Draw: 0.23A (Max)
Power Consumption: 5.5W
Speed: 4500 RPM
Noise Level: 45 dBA
Bearing Type: Ball Bearing
Material: Housing: Die-cast aluminum; Impeller: Fiberglass-reinforced PA plastic
Termination: 2 leads, stripped ends (or connector options depending on sub-model)
Operating Temperature Range: -20°C to +75°C
Life Expectancy (L10 at 40°C): 70,000 hours
Static Pressure: 0.39 in H2O (97 Pa)
Weight: Approximately 200g
Protection: Electronically protected against reverse polarity, locked rotor, and overload.
Key Features:
High Airflow: Delivers a substantial 106 CFM for effective cooling.
Robust Construction: Die-cast aluminum housing and durable impeller for long-lasting performance.
Ball Bearing System: Ensures smooth operation, extended lifespan, and reduced noise.
Wide Operating Voltage Range: Accommodates voltage fluctuations.
High Static Pressure: Effective in overcoming airflow resistance in dense enclosures.
Electronic Protection: Safeguards against common electrical faults.
Long Life Expectancy: Designed for continuous operation with minimal maintenance.
Model Suitability:
Industrial Automation: Cooling PLCs, motor drives, and control cabinets.
Telecommunications: Cooling network equipment, servers, and base stations.
Power Electronics: Cooling power supplies, inverters, and rectifiers.
Medical Equipment: Cooling sensitive electronics in medical devices.
Transportation: Cooling systems in vehicles and transportation infrastructure.
Renewable Energy: Cooling components in solar inverters and wind turbine systems.
* Any application requiring reliable, high-performance DC cooling in a 92x92x32mm form factor.
