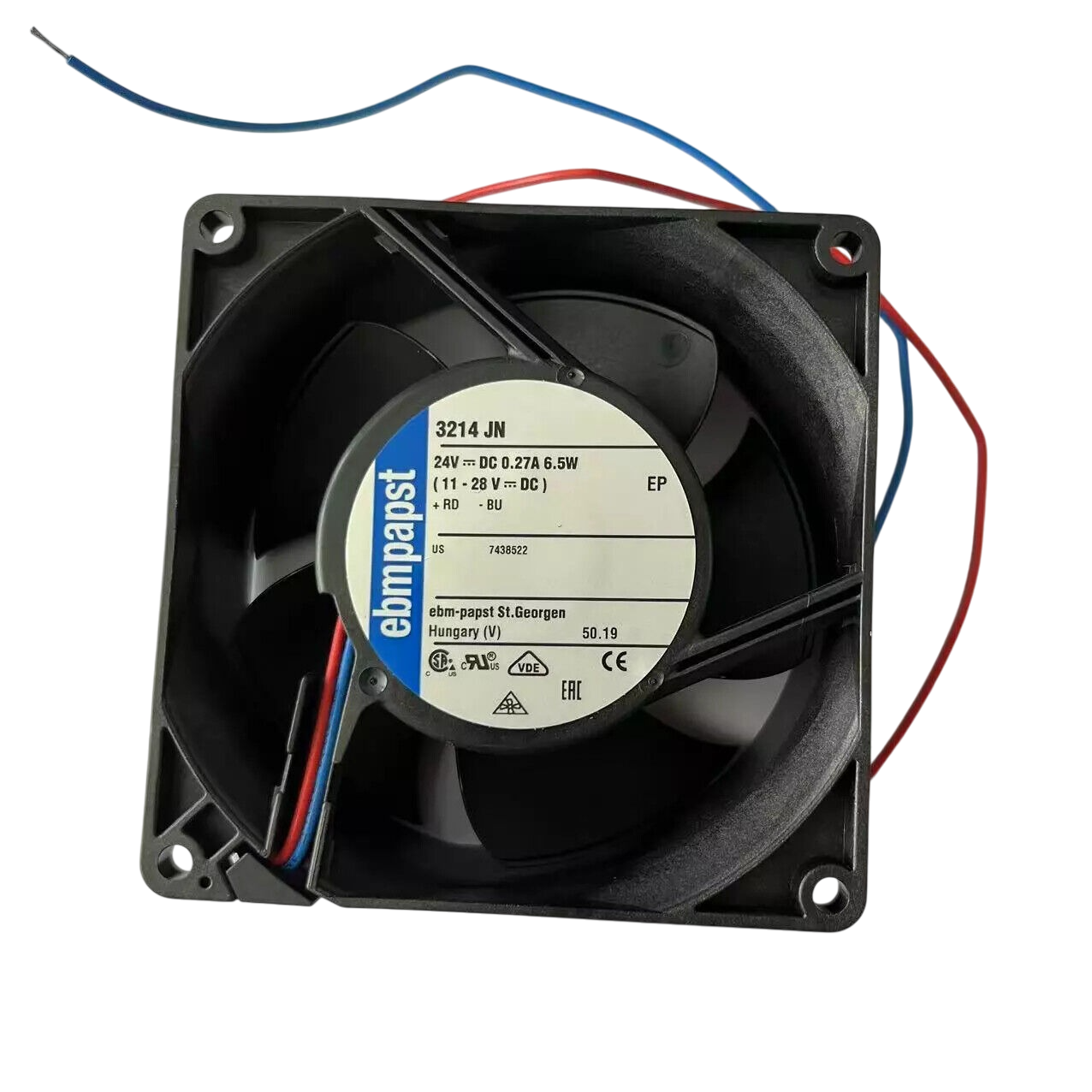

Ebmpapst 3214JN Axial Fan 92x92x32mm 24VDC 109CFM 7.3W IP68 Tubeaxial Fan
$39.99
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebmpapst 3214JN Axial Fan 92x92x32mm 24VDC 109CFM 7.3W IP68 Tubeaxial Fan
Dimensions: 92mm x 92mm x 32mm
Nominal Voltage: 24 VDC
Airflow: 109 CFM
Power Consumption: 7.3W
Speed: 5300 RPM
Bearing Type: Ball Bearing
Material: Die-cast aluminum housing, fiberglass-reinforced impeller
IP Rating: IP68
Noise Level: 52 dBA
Weight: 0.240 kg
Ebmpapst 3214JN Axial Fan 92x92x32mm 24VDC 109CFM 7.3W IP68 Tubeaxial Fan
Full Specifications:
Dimensions: 92mm x 92mm x 32mm (Length x Width x Thickness)
Nominal Voltage: 24 VDC
Voltage Range: 16 … 28 VDC
Airflow: 109 CFM (185 m³/h)
Power Consumption: 7.3W
Speed: 5300 RPM
Bearing Type: Ball Bearing
Material: Housing: Die-cast aluminum; Impeller: Fiberglass-reinforced PA plastic
Connection: 4 leads, 310mm, AWG 22, TR 64.
Motor Protection: Protected against reverse polarity and locked rotor.
Insulation Class: “F”
Operating Temperature Range: -20°C to +75°C
Storage Temperature Range:-40°C to +80°C
Service Life (L10 at 40°C): 62,500 hours
Noise Level: 52 dBA
Weight: 0.240 kg
Approvals: VDE, UL, CSA, CE
IP Rating: IP68 (Dust-tight and protected against continuous immersion in water)
Key Features:
High Airflow: Delivers a substantial 109 CFM for effective cooling.
Robust Construction: Die-cast aluminum housing and fiberglass-reinforced impeller ensure durability.
IP68 Protection: Fully protected against dust and water ingress, suitable for harsh environments.
Long Service Life: Ball bearing design provides extended operational life.
Wide Operating Temperature Range: Functions reliably in extreme temperatures.
Motor Protection: Safeguarded against reverse polarity and locked rotor conditions.
PWM Control Input: Speed control via external PWM signal.
Alarm Signal Output: Provides a signal for fan malfunction or failure.
Model Suitability:
Industrial Automation: Cooling of control cabinets, PLCs, and other automation equipment.
Telecommunications: Cooling of base stations, network equipment, and power supplies.
Renewable Energy: Cooling of inverters, solar trackers, and wind turbine components.
Outdoor Applications: Any application requiring robust, weatherproof cooling.
Harsh Environments: Suitable for use in dusty, humid, or wet conditions.
HVAC Systems: Can be used in specialized HVAC applications requiring DC fans.
Medical Equipment: Cooling of sensitive medical devices.
Transportation: Cooling of electronics in vehicles and transportation systems.
* Server and network equipment.
