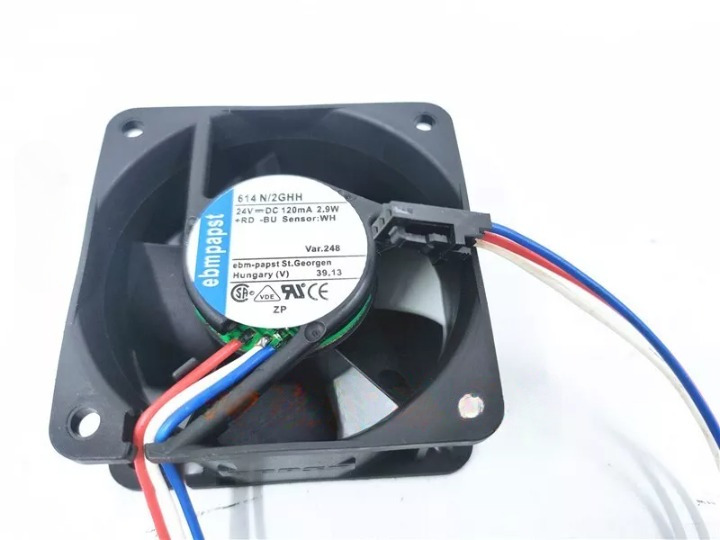

Ebm-papst 614N/2GHH Axial Fan 24VDC High Performance Sintec-Sleeve Bearing
$20.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 614N/2GHH Axial Fan 24VDC High Performance Sintec-Sleeve Bearing
Nominal Voltage: 24 VDC
Nominal Speed: 3200 RPM
Air Flow: 38.3 CFM
Noise Level: 47 dB(A)
Power Consumption: 3.6 W
Bearing Type: Sintec-Sleeve
Fan Frame Size: 60x60x25 mm
Material: Fiberglass-reinforced PA plastic
Protection Class: IP20
Ambient Temperature Range: -20°C to +70°C
Service Life: 65000 h
Product: Ebm-papst 614N/2GHH Axial Fan 24VDC High Performance Sintec-Sleeve Bearing
Full Specifications:
– Nominal Voltage: 24 VDC
– Type of Voltage: DC
– Nominal Speed: 3200 RPM
– Air Flow: 38.3 CFM (65 m³/h)
– Noise Level: 47 dB(A)
– Power Consumption: 3.6 W
– Current Draw: 0.15 A
– Bearing Type: High Performance Sintec-Sleeve
– Fan Frame Size: 60x60x25 mm
– Weight: 0.1 kg
– Connection: Stripped, tinned leads
– Material of Impeller: Fiberglass-reinforced PA plastic
– Material of Housing: Die-cast aluminum
– Direction of Rotation: Clockwise, viewed toward rotor
– Protection Class: IP20
– Insulation Class: Class A
– Ambient Temperature Range: -20°C to +70°C
– Service Life L10 at 40°C: 65000 h
– Market Certifications: VDE, CSA, UL, CE
Key Features:
– Compact and robust design for versatile use
– High airflow and static pressure performance
– Low power consumption for energy efficiency
– Low noise emission for quiet operation
– Long service life due to high-quality Sintec-Sleeve bearing
– Resistant to harsh environmental conditions
– Easy to install with stripped and tinned lead wires
– Equipped with electronic commutation for extended lifespan and reliability
– Speed controllable via external PWM signal or DC voltage
– Reverse polarity and locked rotor protection
Models Suitability:
The Ebm-papst 614N/2GHH Axial Fan 24VDC High Performance Sintec-Sleeve Bearing is suitable for a wide range of applications where reliable cooling and ventilation are required. These include but are not limited to:
– Telecommunications equipment
– Industrial control cabinets
– LED cooling systems
– Automotive applications
– Data center cooling solutions
– Medical devices
– Compact electronic devices requiring efficient heat dissipation
