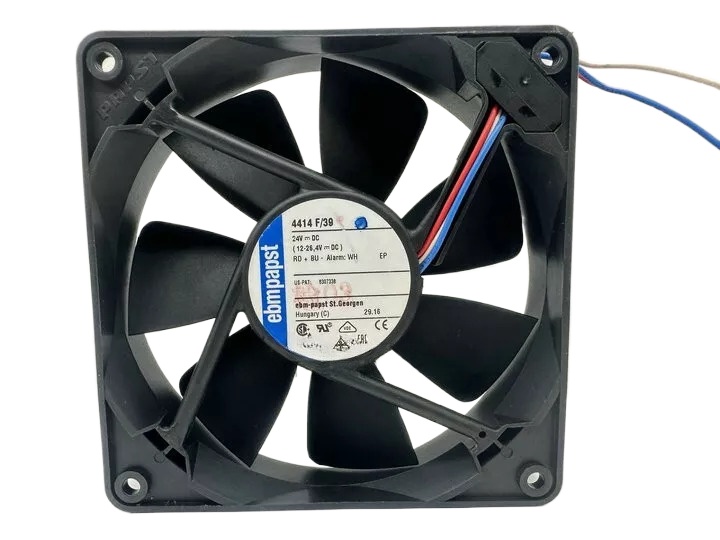

Ebm-papst 4414F/39 Axial Fan 119x119x38mm 24VDC High Performance Ball Bearing
$29.33
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 4414F/39 Axial Fan
Specifications:
– Voltage: 24 VDC
– Power: 5 W
– Current: 210 mA
– Speed: 2600 RPM
– Airflow: 105.9 CFM
– Noise level: 45 dB(A)
– Bearing: Sleeve
– Rotation: Clockwise
– Material: Fiberglass-reinforced plastic
– Weight: 0.2 kg
– Temperature range: -20°C to +70°C
– Life expectancy: 55000 h
– Protection class: IP20
– Approvals: VDE, CSA, UL, CE
Features:
– Energy-efficient EC motor
– Compact design
– Low power consumption
– High airflow and pressure
– Low noise
– Durable construction
– Maintenance-free bearing
– Reverse polarity protection
– Suitable for various applications
Suitability:
Ideal for telecommunications, IT, industrial, LED, medical, automotive, power supply, and home appliances.
Product: Ebm-papst 4414F/39 FAN
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power input: 5 W
– Nominal current draw: 210 mA
– Speed: 2600 RPM
– Airflow: 105.9 CFM
– Static pressure: 0.18 inH2O
– Noise level: 45 dB(A)
– Bearing type: Sleeve bearing
– Direction of rotation: Clockwise, viewed toward rotor
– Connection: Terminal leads
– Cable length: 300 mm
– Housing material: Fiberglass-reinforced plastic
– Blade material: Fiberglass-reinforced plastic
– Motor protection: Protected against reverse polarity and locking
– Weight: 0.2 kg
– Operating temperature range: -20°C to +70°C
– Life expectancy L10 at 40°C: 55000 h
– Protection class: IP20
– Approval: VDE, CSA, UL, CE
Key Features:
– Energy-efficient GreenTech EC motor
– Compact design for space-saving installation
– Low power consumption for energy savings
– High airflow and static pressure performance
– Low noise emission for quiet operation
– Robust and durable construction
– Maintenance-free sleeve bearing system
– Easy to connect with terminal leads
– Reverse polarity and locking protection for motor safety
– Suitable for use in a wide range of temperatures
– Long life expectancy for reliable long-term operation
– Compliance with international standards and certifications
Models Suitability:
The Ebm-papst 4414F/39 FAN is suitable for a variety of applications where efficient cooling and ventilation are required. Its compact size and high-performance characteristics make it ideal for use in:
– Telecommunications equipment
– IT and server rack cooling
– Industrial control cabinets
– LED cooling systems
– Medical devices
– Automotive applications
– Compact power supply units
– Home appliances
This fan is designed to meet the needs of applications demanding high airflow with limited space, providing a reliable solution for thermal management challenges across various industries.
