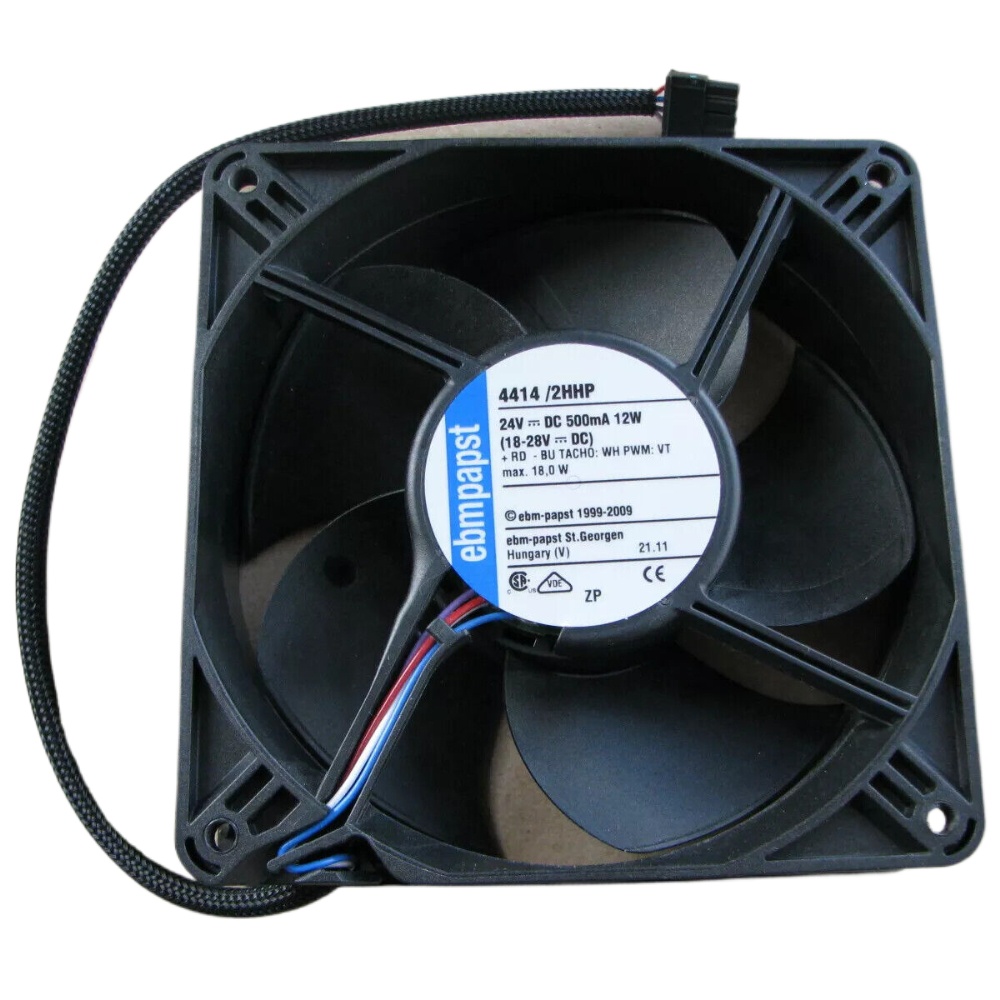

Ebm-papst 4414/2HHP Axial Fan 119x119x38mm 24VDC High Performance Ball Bearing
$26.61
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 4414/2HHP Axial Fan
Specifications:
– Voltage: 24 VDC
– Power: 5.8 W
– Current: 0.24 A
– Speed: 9300 RPM
– Airflow: 160 m³/h
– Noise level: 59 dB(A)
– Weight: 0.4 kg
– Dimensions: 119 x 119 x 38 mm
– Bearing: Ball bearing
– Material: Fiberglass-reinforced plastic
– Rotation: Clockwise
– Protection: IP20
– Approval: VDE, CSA, UL, CE
Key Features:
– S-Force technology
– Compact design
– Energy-efficient EC motor
– Low noise emission
– Long service life
Applications:
– Telecommunications
– Industrial automation
– Solar inverters
– Medical devices
– IT cooling
– LED systems
– Automotive
– Heat exchangers
Product: Ebm-papst 4414/2HHP FAN
Full Specifications:
– Nominal voltage: 24 VDC
– Nominal voltage range: 18-32 VDC
– Power consumption: 5.8 W
– Nominal current draw: 0.24 A
– Speed: 9300 RPM
– Airflow: 160 m³/h
– Static pressure: 280 Pa
– Noise level: 59 dB(A)
– Weight: 0.4 kg
– Dimensions: 119 x 119 x 38 mm
– Bearing type: Ball bearing
– Motor protection: Locked rotor protection and polarity protection
– Connection: Stripped wires
– Material: Fiberglass-reinforced plastic; impeller and housing
– Direction of rotation: Clockwise, viewed toward rotor
– Protection class: IP20
– Approval: VDE, CSA, UL, CE
– Ambient temperature range: -20°C to +70°C
Key Features:
– S-Force high-performance technology for exceptional airflow and pressure
– Compact design with high power density
– Energy-efficient GreenTech EC motor
– Robust and maintenance-free ball bearing system
– Advanced aerodynamic design for optimal air movement
– Low noise emission for noise-sensitive environments
– Long service life due to high-quality materials and construction
– Easy to integrate with various systems due to flexible control options
– Speed-controllable via analog or PWM signal
Models Suitability:
The Ebm-papst 4414/2HHP FAN is suitable for a wide range of applications where efficient cooling and air circulation are required. Its robust construction and high-performance characteristics make it ideal for use in:
– Telecommunications equipment
– Industrial automation and control cabinets
– Frequency converters
– Solar inverters
– Medical devices
– IT and server rack cooling
– LED cooling systems
– Automotive applications
– Compact heat exchangers
This fan is designed to meet the rigorous demands of continuous operation in challenging environments, ensuring reliability and performance for critical applications.
