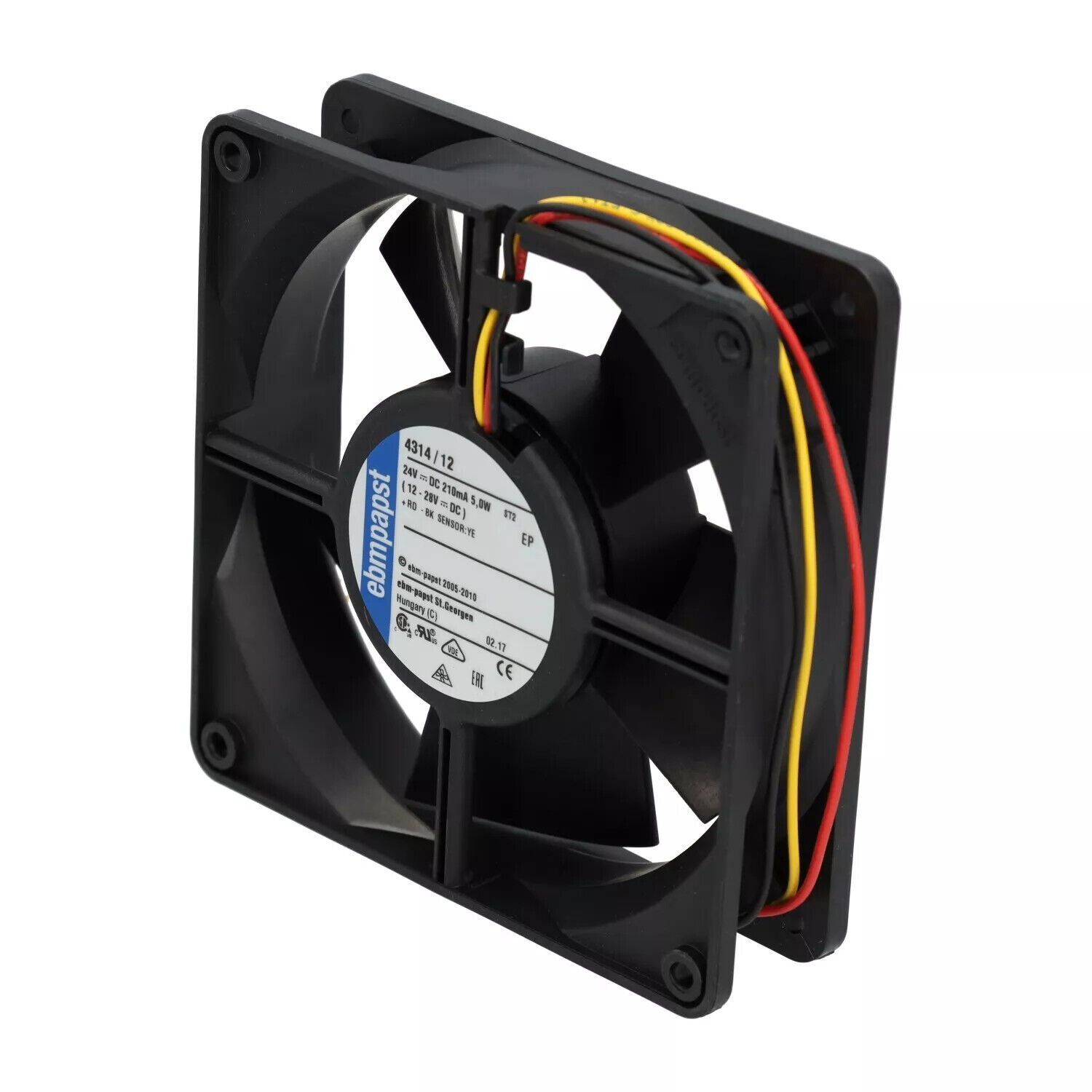

Ebm-papst 4314/12 Axial Fan 119x119x32mm 24VDC 100CFM Ball Bearing Low Noise
$73.90
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 4314/12 Axial Fan 119x119x32mm 24VDC 100CFM Ball Bearing Low Noise is a compact fan with dimensions of 119 x 119 x 32 mm. It operates at 24 VDC, providing an airflow of 100 CFM with low noise emission. The fan features a ball bearing, 2600 RPM speed, and energy-efficient EC motor technology. It is suitable for various cooling applications in telecommunications, IT, industrial control cabinets, LED cooling, medical equipment, automotive, renewable energy systems, HVAC systems, electronic equipment racks, and data centers.
Product: Ebm-papst 4314/12 Axial Fan 119x119x32mm 24VDC 100CFM Ball Bearing Low Noise
Full Specifications:
– Dimensions: 119 x 119 x 32 mm
– Voltage: 24 VDC
– Airflow: 100 CFM (cubic feet per minute)
– Bearing Type: Ball bearing
– Noise Level: Low noise emission
– Speed: 2600 RPM (revolutions per minute)
– Power Consumption: 5W
– Current Draw: 210 mA
– Frequency: DC
– Weight: 0.5 kg
– Material: Fiberglass-reinforced plastic; impeller and housing
– Connection: Stripped wires
– Motor: Electronically commutated external rotor motor
– Protection Class: IP20
– Ambient Temperature Range: -20°C to +70°C
– Expected Life: 65,000 hours at 40°C
Key Features:
– Energy-efficient operation due to EC motor technology
– Compact design for installation in tight spaces
– Low noise output for use in noise-sensitive environments
– High-performance ball bearings ensure long service life and reliability
– Advanced blade design for optimal airflow and pressure characteristics
– Speed controllable via external control input
– Reverse polarity and locked rotor protection
– Maintenance-free and robust design for continuous operation
Models Suitability:
– Suitable for a wide range of cooling applications including telecommunications, IT, industrial control cabinets, and LED cooling
– Ideal for use in medical equipment due to low noise requirements
– Appropriate for automotive applications where space and noise are critical factors
– Can be used in renewable energy systems such as solar inverters and battery cooling to maintain optimal operating temperatures
– Fits in home and commercial HVAC systems for efficient air circulation
– Deployable in electronic equipment racks and data centers for thermal management solutions
