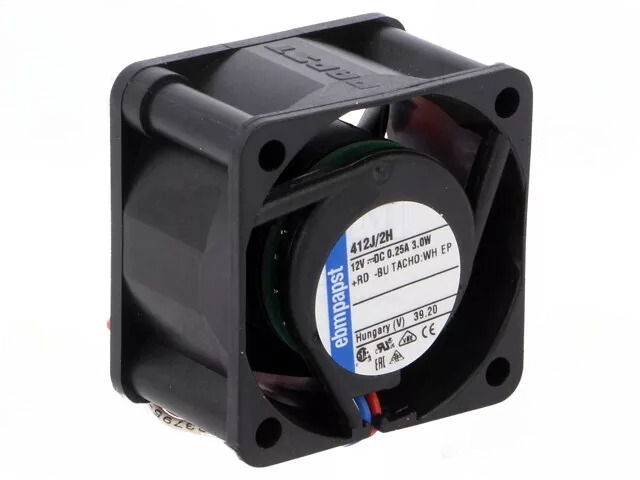

Ebm-papst 412J/2H Axial Fan 40x40x20mm 12VDC High Performance 2-Wire Connection
$61.42
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 412J/2H Axial Fan
Specifications:
– Voltage: 12V DC
– Current: 90 mA
– Power: 1.1W
– Speed: 8500 RPM
– Air Flow: 8.9 CFM
– Noise Level: 35 dB(A)
– Bearing: Ball bearing
– Material: Fiberglass-reinforced plastic
– Weight: 0.08 kg
– Dimensions: 40x40x20mm
– Temperature Range: -20°C to +70°C
– Life: 50,000 hours
– Approval: VDE, CSA, UL, CE
Key Features:
– Compact design
– High-performance DC motor
– Low power consumption
– Durable ball bearing system
– Low noise emission
– Integrated motor protection
– Easy installation
– Compliance with safety standards
Suitability:
– Electronic equipment
– Telecommunication systems
– LED cooling
– Power supply units
– Automotive
– Medical devices
– Industrial control cabinets
Product: Ebm-papst 412J/2H FAN
Specifications:
– Nominal Voltage: 12V DC
– Operating Voltage Range: 10.2 to 13.8V
– Nominal Current Consumption: 90 mA
– Power Input: 1.1W
– Speed: 8500 RPM
– Air Flow: 8.9 CFM (Cubic Feet per Minute)
– Static Pressure: 0.16 inch H2O
– Noise Level: 35 dB(A)
– Bearing Type: Ball bearing
– Motor Protection: Locked rotor protection and polarity protection
– Connection: 2 leads, stripped ends
– Material: Fiberglass-reinforced plastic; PA impeller and housing
– Weight: 0.08 kg
– Dimensions: 40mm x 40mm x 20mm
– Ambient Temperature Range: -20°C to +70°C
– Expected Life: 50,000 hours at 40°C
– Approval: VDE, CSA, UL, CE
Key Features:
– Compact design for space-limited applications
– High-performance with efficient DC motor
– Low power consumption for energy-saving operation
– Durable ball bearing system for long service life
– Low noise emission for quiet operation
– Robust construction with high-quality materials
– Integrated motor protection features for enhanced reliability
– Easy to install with stripped lead wire connections
– Compliance with international safety standards
Models Suitability:
The Ebm-papst 412J/2H FAN is suitable for a wide range of applications where reliable and efficient cooling is required. These include but are not limited to:
– Electronic equipment cooling (servers, routers, switches, etc.)
– Telecommunication systems
– LED cooling systems
– Compact power supply units
– Automotive applications
– Medical devices
– Industrial control cabinets
The fan’s compact size and high airflow make it an excellent choice for devices with limited space that require effective thermal management. Its compliance with various safety standards ensures that it can be integrated into products for global markets.
