Siemens 3RT1046-1AB00 AC Contactor 24V coil 95A 3P
$110.13
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

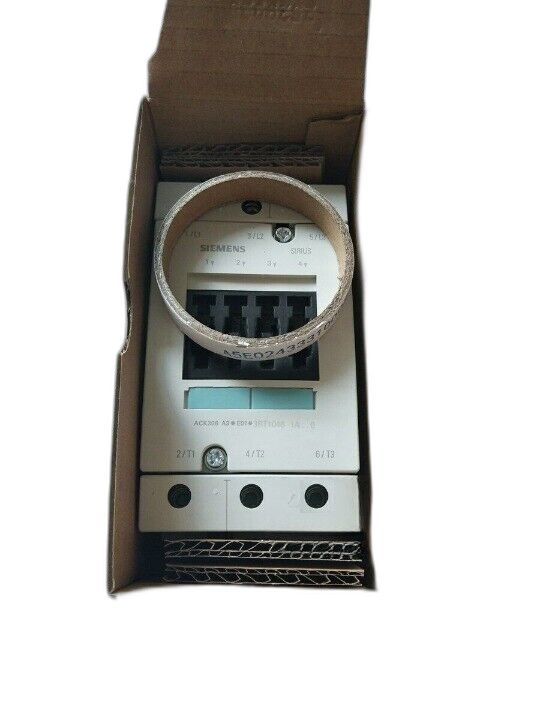

Siemens 3RT1046-1AB00 AC Contactor
Specifications:
Coil voltage: 24V AC
Rated current: 95A
Number of poles: 3
Contact configuration: 3NO
Rated insulation voltage: 690V
Rated operational voltage: 690V
Rated operational current: 95A
Rated short-circuit breaking capacity: 100kA
Rated frequency: 50/60Hz
Operating temperature range: -25°C to +60°C
Mounting type: Screw terminal
Dimensions (W x H x D): 114 x 100 x 127mm
Weight: 1.2kg
Key Features:
Compact design
High switching capacity
Long electrical and mechanical life
Maintenance-free
RoHS compliant
Model Suitability:
Suitable for industrial applications
Ideal for controlling motors, lighting, and other electrical loads
Siemens 3RT1046-1AB00 AC Contactor 24V coil 95A 3P
Specifications:
Coil voltage: 24V AC
Rated current: 95A
Number of poles: 3
Contact configuration: 3NO
Rated insulation voltage: 690V
Rated operational voltage: 690V
Rated operational current: 95A
Rated short-circuit breaking capacity: 100kA
Rated frequency: 50/60Hz
Operating temperature range: -25°C to +60°C
Mounting type: Screw terminal
Dimensions (W x H x D): 114 x 100 x 127mm
Weight: 1.2kg
Key Features:
Compact design
High switching capacity
Long electrical and mechanical life
Maintenance-free
RoHS compliant
Model Suitability:
Suitable for use in industrial applications
Ideal for controlling motors, lighting, and other electrical loads
Full Description:
The Siemens 3RT1046-1AB00 AC Contactor is a high-performance contactor designed for demanding industrial applications. With its compact design, high switching capacity, and long electrical and mechanical life, it offers reliable and efficient control of electrical loads. The contactor features a 24V AC coil, 95A rated current, and 3NO contact configuration. It is suitable for use in a wide range of applications, including motor control, lighting control, and other electrical load control.
