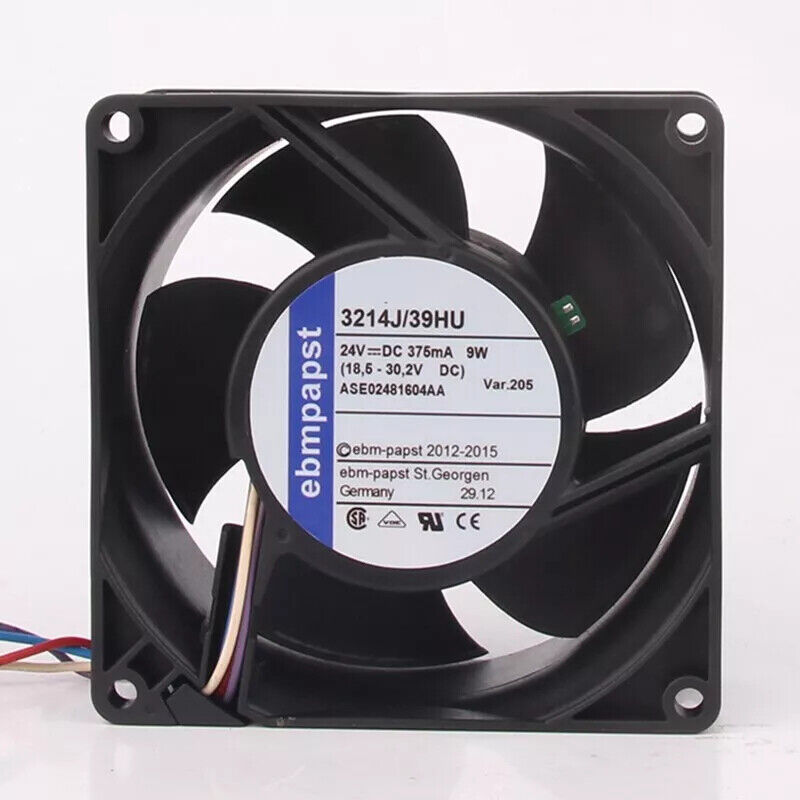

Ebmpapst 3214J/39HU Axial Fan 24VDC 194CFM 9000RPM High Performance IP68

Add your review

$31.80

Pricing: All prices are listed in U.S. dollars (USD).
Secure Payments: We process payments securely through PayPal and Stripe.
Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
International Shipping: For orders outside the U.S., please review our shipping policies for details.

Ebmpapst 3214J/39HU Axial Fan 24VDC 194CFM 9000RPM High Performance IP68: Manufacturer: Ebmpapst, Part Number: 3214J/39HU, Fan Type: Axial Fan, Operating Voltage: 24VDC, Airflow: 194 CFM, Speed: 9000 RPM, Power Consumption: 49.5W, Bearing Type: Ball Bearing, Dimensions: 92mm x 92mm x 38mm, Protection Rating: IP68, Noise Level: 72 dBA, Operating Temperature Range: -20°C to +75°C, Life Expectancy: 45,000 hours, Weight: 0.280 kg, Approvals: UL, CSA, VDE, CE.

Description

Ebmpapst 3214J/39HU Axial Fan 24VDC 194CFM 9000RPM High Performance IP68

Full Specifications:

Manufacturer: Ebmpapst
Part Number: 3214J/39HU
Fan Type: Axial Fan
Operating Voltage: 24VDC
Nominal Voltage Range: 16…30 VDC
Airflow: 194 CFM (330 m³/h)
Speed: 9000 RPM
Power Consumption: 49.5W
Current Draw:2.06A
Bearing Type: Ball Bearing
Dimensions: 92mm x 92mm x 38mm
Material: Housing: Die-cast aluminum; Impeller: Fiberglass-reinforced PA plastic
Protection Rating: IP68 (Dust-tight and protected against continuous immersion in water)
Noise Level: 72 dBA
Operating Temperature Range: -20°C to +75°C
Life Expectancy (L10 at 40°C): 45,000 hours
Connection: Wire leads, 310mm
Weight: 0.280 kg
Approvals: UL, CSA, VDE, CE

Key Features:

High Performance: Delivers exceptional airflow (194 CFM) and speed (9000 RPM) for demanding cooling applications.
Robust Construction: Die-cast aluminum housing and fiberglass-reinforced plastic impeller ensure durability.
IP68 Protection: Fully protected against dust and water ingress, suitable for harsh environments.
Ball Bearing System: Provides long life and reliable operation.
Wide Operating Voltage Range: Operates reliably within a 16-30VDC range.
Wide Operating Temperature: Functions effectively in temperatures from -20°C to +75°C.

Model Suitability:

Industrial Automation: Cooling of control cabinets, PLCs, and other automation equipment.
Telecommunications: Cooling of base stations, network equipment, and power supplies.
Renewable Energy: Cooling of inverters, converters, and other components in solar and wind power systems.
Transportation: Cooling of electronics in vehicles, trains, and other transportation systems.
Military and Aerospace: Cooling of ruggedized equipment in demanding environments.
Medical Equipment: Cooling of sensitive medical devices.
HVAC Systems: High-performance ventilation and air circulation.
* Any application requiring high-performance cooling in a harsh or demanding environment.
