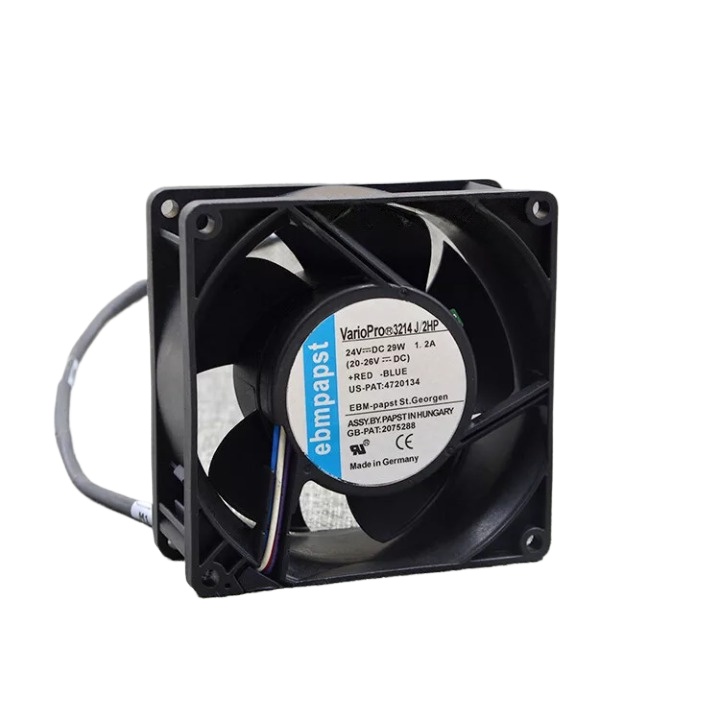

Ebm-papst 3214J/2HP Axial Fan 24VDC 148CFM 9000RPM High Performance
$48.33
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Ebm-papst 3214J/2HP Axial Fan 24VDC 148CFM 9000RPM High Performance:
Manufacturer: Ebm-papst
Part Number: 3214J/2HP
Type: Axial Fan
Voltage: 24VDC
Airflow: 148 CFM
Speed: 9000 RPM
Power Consumption: 21.6W
Current: 0.9A
Bearing Type: Ball Bearing
Dimensions: 92mm x 92mm x 38mm
Material: Housing – Die-cast aluminum; Impeller – Fiberglass reinforced PA plastic
Operating Temperature Range: -20°C to +75°C
Life Expectancy (L10 at 40°C): 70,000 hours
Noise Level: 62 dBA
Connection: Wire leads
Weight: Approximately 280g
Static Pressure: 1.38 in H2O
Protection: IP20
Key Features:
– High Performance
– High Speed
– Long Life Expectancy
– Robust Construction
– Wide Operating Temperature Range
– Potential PWM Control
– Tachometer output
Model Suitability:
– Telecommunications Equipment
– Industrial Automation
– Power Electronics
– Medical Devices
– High-Performance Computing
– Automotive Electronics (Limited)
Ebm-papst 3214J/2HP Axial Fan 24VDC 148CFM 9000RPM High Performance:
Full Specifications:
Manufacturer: Ebm-papst
Part Number: 3214J/2HP
Type: Axial Fan
Voltage: 24VDC
Airflow: 148 CFM (Cubic Feet per Minute)
Speed: 9000 RPM (Revolutions Per Minute)
Power Consumption: 21.6W
Current: 0.9A
Bearing Type: Ball Bearing
Dimensions: 92mm x 92mm x 38mm
Material: Housing: Die-cast aluminum; Impeller: Fiberglass reinforced PA plastic
Operating Temperature Range: -20°C to +75°C
Life Expectancy (L10 at 40°C): 70,000 hours
Noise Level: 62 dBA
Connection: Wire leads (typically 2 or 4, depending on speed control options)
Weight: Approximately 280g
Static Pressure: 1.38 in H2O.
Protection: IP20.
Key Features:
High Performance: Delivers exceptional airflow and static pressure for demanding cooling applications.
High Speed: 9000 RPM for maximum cooling capacity.
Long Life Expectancy: Ball bearing design ensures extended operational life and reliability.
Robust Construction: Die-cast aluminum housing and fiberglass-reinforced impeller for durability.
Wide Operating Temperature Range: Suitable for use in various environmental conditions.
PWM Control (Potentially): Some variants within the 3200J series offer PWM speed control via a 4-wire connection. This specific model may have that capability, but confirmation would require checking the specific datasheet or wiring configuration.
Tachometer output.
Model Suitability:
Telecommunications Equipment: Cooling of servers, routers, and switches in base stations and data centers.
Industrial Automation: Cooling of control cabinets, PLCs, and other electronic components.
Power Electronics: Cooling of inverters, power supplies, and motor drives.
Medical Devices: Cooling of sensitive electronic equipment.
High-Performance Computing: Cooling of CPUs, GPUs, and other components in workstations and servers.
Automotive Electronics (Limited): While robust, the IP20 rating may limit its use in exposed automotive environments. Suitable for enclosed electronics within the vehicle.
Any application requiring high airflow and static pressure in a compact 92mm form factor, operating on 24VDC.
