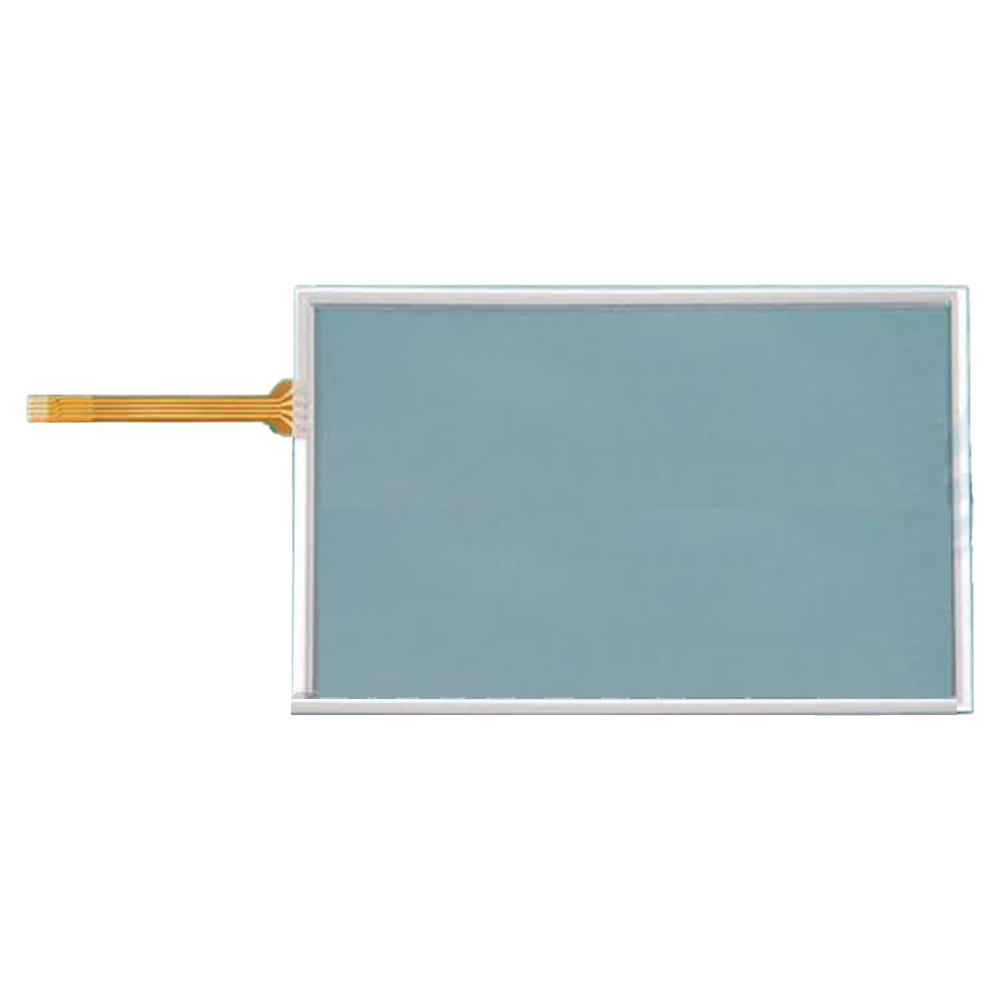

PT070-10F-T1S PT070-1BF-T1S PL070-WST LCD Display Panel

Full Specifications and Key Features:

Product Name: PT070-10F-T1S PT070-1BF-T1S PL070-WST LCD Display Panel

Display Type: TFT LCD

Size: 7.0 inches

Resolution: 800 x 480 pixels

Aspect Ratio: 16:9

Brightness: 400 cd/m²

Contrast Ratio: 800:1

Viewing Angle: 170°/170°

Response Time: 12ms

Color Depth: 262K

Interface: LVDS (1 ch, 6-bit)

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Suitable Models:

Various industrial and medical devices
POS systems
HMI panels
Embedded systems

Full Description:

1PCS PT070-10F-T1S PT070-1BF-T1S PL070-WST LCD Display Panel is a high-quality TFT LCD display panel designed for demanding industrial and commercial applications. With its 7.0-inch size, 800 x 480 resolution, and 16:9 aspect ratio, it provides a clear and vibrant display. The panel features a high brightness of 400 cd/m², a contrast ratio of 800:1, and wide viewing angles of 170°/170°, ensuring excellent visibility even in challenging lighting conditions. Its fast response time of 12ms makes it suitable for dynamic applications. The LVDS interface with 1 channel and 6-bit color depth provides reliable and efficient data transmission. The panel is designed to operate in a wide temperature range of -20°C to +70°C, making it suitable for use in various environments.
